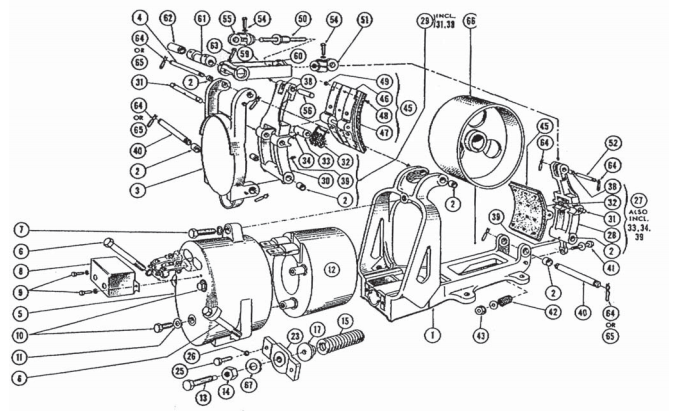

Ohio Contact replacement crane controls for Clark 10" DC Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | C106-194781A | Frame |
| 2 | A106-194824 | Bushing |
| 3 | A106-194707A | Armature |
| 4 | T-103-33 | Bearing Pin |
| 5 | C106-194709 | Magnet Case |
| 6 | T-121-230 | Bolt |
| 7 | T-121-160 | Bolt |
| 8 | A106-194739 | Terminal Shield |
| 9 | T-121-41 | Bolt |
| 10 | T-121-75 | Bolt |
| 11 | T-2-392 | Washer |
| 12 | B106-194710-A1 | 10" Shunt Coil |
| 12 | B106-194710-A7 | Coil |
| 12 | B106-194710-A5 | 10" Series Coil |
| 12 | B106-194710-A9 | Coil |
| 12 | B106-194710-A4 | Series Coil |
| 12 | B106-194710-A8 | Coil |
| 13 | A106-230139-1 | Torque Adjusting Screw |
| 14 | T-115-58 | Nut |
| 15 | A106-194723 | Torque Spring |
| 17 | A106-230138-2 | Spring Seat |
| 23 | A106-194782 | Pressure Plate |
| 24 | T-215-2 | Release Spring, Outer Arm |
| 25 | T-121-136 | Bolt |
| 26 | T-155-20 | Washer |
| 27 | A106-194773A | Assembled Outer Arm & Shoe |
| 28 | A106-194772A | Assembled Outer Arm |
| 29 | A106-194771A | Assembled Inner Arm & Shoe |
| 30 | A106-194770A | Assembled Inner Arm |
| 31 | A106-194774A | Shoe Clamp Shaft & Stop Pin |
| 32 | B106-194839 | Shoe Clamp Spring |
| 33 | A106-194776 | Shoe Clamp Cam |
| 34 | T-143-2 | Shoe Clamp Cam Shaft Screw |
| 38 | A106-194824 | Bushing |
| 39 | T-233-1 | Alemite Fittings |
| 40 | T-103-32 | Bearing Pin, Lower Arm |
| 41 | T-121-182 | Bolt |
| 42 | T-215-2 | Release Spring, Outer Arm |
| 43 | T-281-4 | Lock Nut |
| 45 | A106-194720A | Assembled Brake Shoe & Lining |
| 46 | A106-194734A | Brake Shoe without Lining |
| 47 | B106-194722 | Shoe Lining |
| 48 | T-122-25 | Shoe Lining Screws |
| 49 | T-281-1 | Lock Nut |
| 50 | B106-194718A | Adjusting Bar |
| 51 | A106-194784A | Outer Bar Eye |
| 52 | T-103-22 | Bearing Pin, Outer Bar Eye |
| 54 | T-121-242 | Lock Bolt |
| 55 | A106-194786A | Inner Bar |
| 56 | A106-194815-4 | Eye |
| 59 | B106-194783 | Bearing Pin, Inner Bar Eye |
| 60 | T-152-21 | Gauge Pin |
| 61 | A106-194731 | Eccentric Bushing |
| 63 | T-121-86 | Lock Bolt, Equalizer Yoke |
| 64 | A106-65143 | Retainer, Bearing Pin |
| 67 | T-282-2 | Spring Washer |
