Ohio Contact replacement crane controls for Clark 8" DC Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

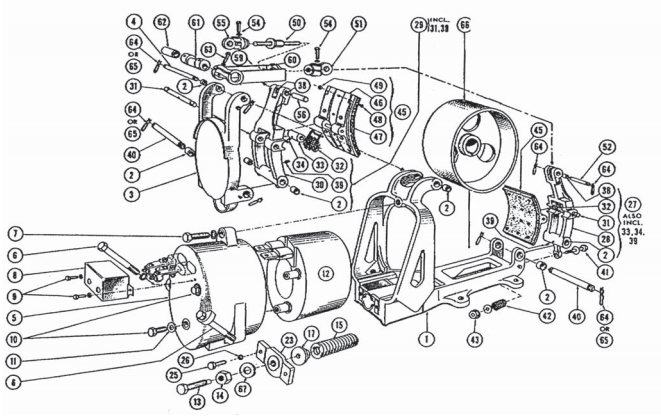

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | B106-230103A | Frame |
| 2 | A106-230140 | Bushing |
| 3 | A106-230105A | Armature |
| 4 | T-103-49 | Bearing Pin |
| 5 | B106-230162A | Magnet Case |
| 6 | T-121-151 | Magnet Case Bolts |
| 7 | T-121-136 | Bolt |
| 8 | B106-230155 | Terminal Shield |
| 9 | T-121-45 | Terminal Shield Bolts |
| 10 | T-121-76 | Magnet Coil Bolts |
| 11 | T-2-39 | Washer |
| 12 | B106-230108-A1 | 8" Shunt Coil |
| 12 | A106-230101 | 8" Brake Assembly |
| 12 | B106-230108-A13 | Coil |
| 12 | B106-230108-A14 | Coil |
| 12 | B106-230108-A16 | Coil |
| 13 | A106-230139-1 | Torque Adjusting Screw |
| 14 | T-115-58 | Nut |
| 15 | A106-230135 | Torque Spring |
| 17 | A106-230138 | Spring Seat |
| 18 | T-152-31 | Torque Indicator Pin |
| 23 | A106-230136A | Pressure Plate |
| 25 | T-121-83 | Bolt |
| 26 | T-155-15 | Washer |
| 28 | A106-230111A | Assembled Outer Arm |
| 30 | A106-230113A | Assembled Inner Arm |
| 35 | A106-230141A | Shoe Retainer Plate Assembly |
| 36 | T-145-1 | Lock Screw |
| 37 | T-155-14 | Washer |
| 38 | A106-230140 | Bushing |
| 39 | T-233-1 | Alemite Fittings |
| 40 | T-103-48 | Bearing Pin, Lower Arm |
| 41 | T-121-62 | Bolt, Outer Arm Release |
| 42 | A106-230158 | Release Spring, Outer Arm |
| 43 | T-281-3 | Lock Nut |
| 45 | A106-230128A | Assembled Brake Shoe & Lining |
| 46 | A106-230129A | Brake Shoe, less lining |
| 47 | A106-230131 | Shoe Lining |
| 48 | T-122-24 | Shoe Lining Screw |
| 49 | T-281-1 | Lock Nut |
| 50 | A106-230116A | Adjusting Bar |
| 51 | A106-230122A | Outer Bar Eye |
| 52 | T-103-47 | Bearing Pin, Outer Bar Eye |
| 54 | T-121-241 | Bar Eye Clamp Bolt |
| 55 | A106-230124A | Inner Bar Eye |
| 56 | A106-230147 | Bearing Pin, Inner Bar Eye |
| 59 | B106-230169 | Equalizer Yoke |
| 60 | T-152-21 | Gauge Pin |
| 61 | A106-230132A | Bushing |
| 63 | T-121-50 | Lock Bolt, Equalizer Yoke |
| 64 | A106-230148 | Retainers, Bearing Pin |
| 67 | T-282-1 | Spring Washer |
