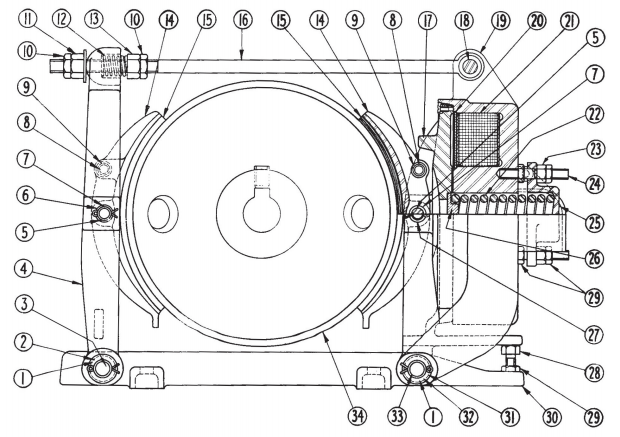

Ohio Contact replacement crane controls for Cutler Hammer No. 503 10" Type "M" Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 29-468 | Base Bushing |
| 2 | 929-759 | Shoe Lever Bushing |
| 3 | 913-862 | Pin (For Shoe Lever) |
| 4 | 624-489 | Shoe Lever With Bushings |
| 5 | 913-863 | Pin (For Brake Shoe) |
| 6 | 29-467 | Armature Bushings Only |
| 8 | 51-211 | Plug For Aligning Brake Shoe |
| 9 | 969-75J | Spring in Brake Shoe |
| 10 | 915-1443Z | Nut |
| 11 | 15-152 | Nut |
| 12 | 69-2806 | Spring For Pull Rod |
| 13 | 915-1442Z | Nut |
| 14 | 623-134 | Brake Shoe w/Lining Assembled |
| 15 | 1312-44 | Rivets |
| 15 | 48-338-6 | Brake Lining |
| 16 | 61-136-3 | Pull Rod |
| 17 | 624-441 | Armature Lever With Bushings |
| 18 | 13-506-9 | Pin (For Pull Rod) |
| 20 | 873-8 | Coil Shield |
| 20 | 630-54 | String Babitt |
| 21 | Magnet Coil | Give # on Coil |
| 22 | 69-490 | Main Spring |
| 23 | 915-1403Z | Nut |
| 24 | 914-624 | Stud |
| 25 | 3679-89F1 | Spring Support |
| 26 | 879-3 | Spring Gland |
| 27 | 29-467 | Armature Bushings Only |
| 28 | 911-444 | Adjusting Screw |
| 29 | 915-1401Z | Nut |
| 30 | 17-710-2 | Base |
| 31 | 929-759 | Shoe Lever Bushing |
| 32 | 929-760 | Armature Bushing (Base) |
| 33 | 913-861 | Pin (For Armature) |
| 0 | 19-972-16 | Stop Plate |
