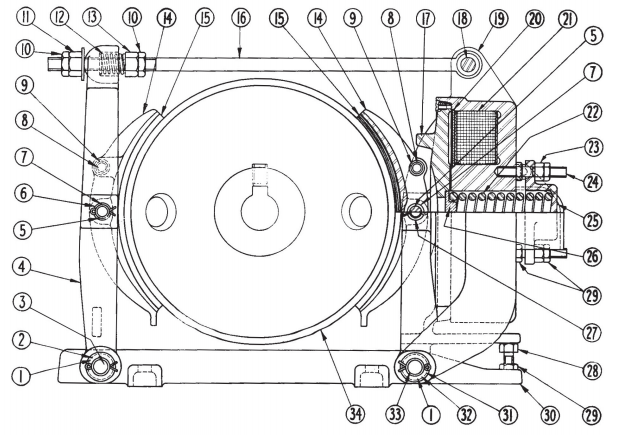

Ohio Contact replacement crane controls for Cutler Hammer No. 503 30" Type "M" Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 29-474 | Bushing |
| 2 | 929-805 | Bushing |
| 3 | 913-896 | Pin |
| 4 | 624-493 | Shoe Lever with Bushings |
| 5 | 913-895 | Pin |
| 7 | 29-472 | Bushing |
| 8 | 51-215 | Plug |
| 9 | 969-651 | Spring in Brake Shoe |
| 10 | 915-2382Z | Lock Nut |
| 11 | 15-155 | Nut |
| 12 | 969-463 | Spring |
| 13 | 915-2381Z | Nut |
| 14 | 623-167 | Brake Shoes w/Lining |
| 15 | 48-338-18 | Brake Lining |
| 16 | 61-141-3 | Pull Rod |
| 17 | 624-454 | Armature Lever |
| 18 | 913-894 | Pin |
| 20 | 873-11 | Coil Shield |
| 21 | Magnet Coil | Give # on Coil |
| 22 | 69-494 | Main Spring |
| 23 | 915-1561Z | Nut |
| 24 | 914-738 | Stud |
| 25 | 3679-92F1 | Spring Support |
| 26 | 49-2287-2 | Spring Gland |
| 27 | 29-472 | Base Bushing |
| 28 | 911-6056Z | Adjusting Screw |
| 29 | 915-1562Z | Nut |
| 30 | 17-715-2 | Base |
| 31 | 929-805 | Bushing |
| 32 | 929-806 | Armature Bushings (Base) |
| 33 | 913-890 | Pin |
