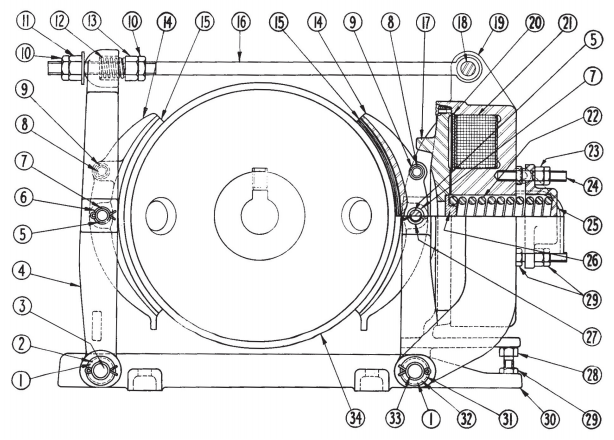

Ohio Contact replacement crane controls for Cutler Hammer No. 503 8" Type "M" Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 29-468 | Base Bushing |
| 2 | 29-1890-6 | Shoe Lever Bushings |
| 3 | 913-854 | Pin |
| 4 | 624-488 | Shoe Lever w/Bushings |
| 5 | 913-856 | Pin |
| 6 | 29-466 | Shoe Lever Bushings |
| 7 | 29-466 | Shoe Lever Bushings |
| 8 | 51-210 | Plug for Brake Shoe |
| 9 | 969-26J | Spring in Brake Shoe |
| 10 | 915-1443Z | Nut |
| 11 | 15-152 | Nut |
| 12 | 969-461 | Spring for Pull Rod |
| 13 | 915-1442Z | Nut |
| 14 | 48-320 | Brake Shoes w/Lining |
| 15 | 48-338-5 | Brake Lining |
| 15 | 1312-441 | Rivets |
| 16 | 61-135-3 | Pull Rod |
| 17 | 624-431 | Armature Lever w/Bushings |
| 18 | 913-855 | Pin |
| 20 | 630-54 | String Babitt |
| 20 | 873-6 | Coil Shield |
| 21 | Magnet Coil | Give # on Coil |
| 22 | 69-489 | Main Spring |
| 23 | 915-1403Z | Nut |
| 24 | 914-624 | Stud |
| 25 | 3679-88F1 | Spring Support |
| 26 | 879-43 | Spring Gland |
| 27 | 29-466 | Shoe Lever Bushings |
| 28 | 911-5892Z | Contact Screw |
| 29 | 915-1401Z | Nut |
| 30 | 17-709-2 | Base |
| 31 | 29-1890-6 | Shoe Lever Bushings |
| 32 | 29-1890-6 | Shoe Lever Bushings |
| 33 | 913-853 | Pin |
