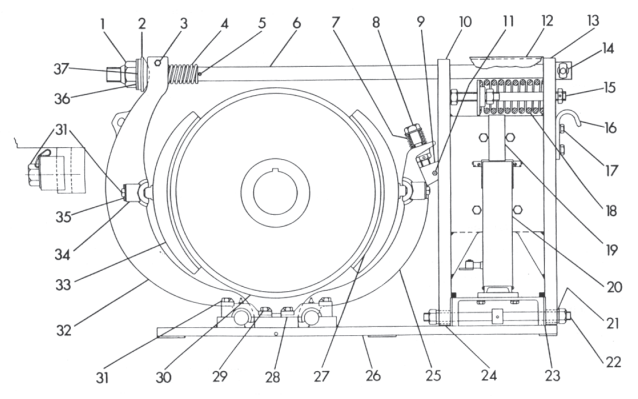

Ohio Contact replacement crane controls for Cutler Hammer No. 505 30" DC Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 15-958 | Huglock Nut |
| 2 | 16-1981 | Washer |
| 3 | 11-1908 | Hex Head Screw |
| 3 | 15-610 | Locknut |
| 4 | 69-2091 | Compression Spring |
| 5 | 13-3186-21 | Spring Pin |
| 6 | 61-1869 | Pull Rod |
| 7 | 69-1931 | Spring |
| 8 | 54-4020-6 | Wedge Adjusting Screw |
| 9 | 54-4986 | Adjusting Wedge |
| 10 | 48-896 | Magnet Armature (Inner) |
| 11 | 27-82 | Grease Fitting |
| 12 | 47-11498 | Cover |
| 13 | 48-1260 | Magnet Armature (Outer) |
| 14 | 13-5065 | Pin |
| 14 | 18-1962 | Stop Plate |
| 14 | 911-5888Z | Screw |
| 15 | 11-2288 | Adjusting Screw Assembly |
| 16 | 52-1079 | Hook |
| 17 | 11-327 | Hex Head Screw |
| 17 | 916-199 | Lockwasher |
| 18 | 69-2090 | Compression Spring |
| 19 | 73-1210 | Guard |
| 20 | Coil | Give # on Coil |
| 21 | 16-1747 | Spring Plate |
| 22 | 14-527 | Stud |
| 23 | 18-59-9 | Shim |
| 23 | 18-59-5 | Strap |
| 24 | 29-2779-5 | Bushing |
| 25 | 24-4113 | Inner Shoe Lever |
| 26 | 17-7102 | Base |
| 27 | 48-338-25 | Shoe Lining |
| 28 | 20-1067 | Bearing Cap |
| 29 | 79-4180-18 | Lock Bracket |
| 29 | 11-2060 | Hex Head Screw |
| 31 | 11-2061 | Hex Head Screw |
| 32 | 24-4112 | Outer Shoe Lever |
| 33 | 48-830 | Shoe Complete |
| 34 | 55-1352 | Clamp |
| 35 | 69-2092 | Locking Spring |
| 36 | 16-1982 | Washer |
| 37 | 16-1983 | Fabreeka Washer |
