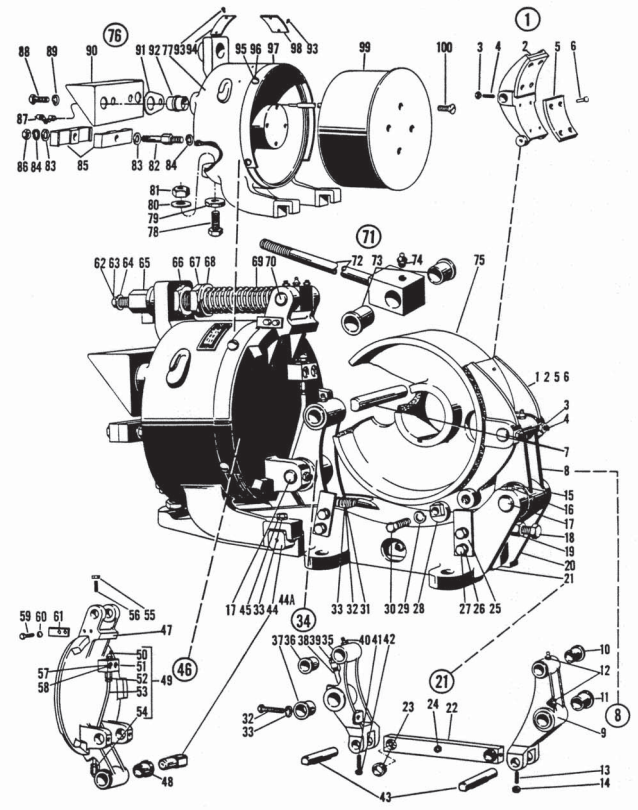

Square D Class 5010 10" Type WB Brake, Folio 5

Item No. OEM No. Description
1 W-10004-A Assembled Brake Shoe Complete
2 W-10005 Brake Shoe, Only
3 H.I. Check Nut
4 Set Screw
5 W-10043 Brake Block
6 WB-159 Lining Rivet
7 W-10032 Shoe Pin
8 W-10006-A Assembled Shoe Lever
9 W-10008-A Shoe Lever With Bearings
10 FP-24B45 Bearing
11 FP-24B40 Bearing
12 52927-017-60 Grease Fitting
13
14 H.I. Check Nut
15 Set Screw
16 H.I. Check Nut
17 W-10033 Shoe Lever Pin
17 W-10034 Shoe Lever Pin, Armature End
18 WB-355 Shoe Adjusting Screw
19 W-10042 Lock Nut
20 W-10018-A Assembled Frame, Complete
21 W-10009-A Assembled Connecting Rod
22 W-10095-A Connecting Rod
23 FP-24B47 Bearing
24 FP-25A11 Grease Fitting
25 W-10025 Cam Rail
26 Plated Lock Washer
27 02701-00200 Pl. Lk. Washer
27 Hex Head Cap Screw, Plated
28 W-8015-A Cam (replace with W-10117)
29 Plated Lock Washer
30 Hex Head Cap Screw, Plated
31 W-10021 Centering Spring
33 Lock Washer, Plated
34 W-10007-A Assembled Shoe Lever
35 W-10008-A Shoe Lever With Bearings
36 FP-24B45 Bearing
37 FP-24B40 Bearing
39 52927-017-60 Grease Fitting
40 52927-017-70 Grease Fitting
41 Set Screw
42 H.I. Check Nut
43 W-10098 10" Connecting Rod Pin
44 W-10030 Magnet Hinge Pin
44 W-10028 Frame Bushing
44 W-10114 Pin
44 W-10115 Collar
45 Hex Head Cap Screw, Plated
46 W-10002-A Assembled Armature
47 W-10003-A Armature, Complete
48 FP-24B40 Bearing
49 W-10047-A Assembled Grease Unit
50 52927-017-50 Grease Fitting
51 W-13026 Header Block
52 52927-018-50 Compression Fitting
53 W-10048 Tube
54 52927-018-70 Compression Fitting
55 Set Screw
56 H.I. Check Nut
59 Hex Head Cap Screw, Plated
60 Plated Lock Washer
61 W-13049 Air Gap Indicator
62 Hex Head Cap Screw, Plated
63 Plated Lock Washer
64 LC-48 Washer
65 W-10022 Manual Release Nut
66 W-10041 Lock Nut
67 W-10023 Spring Adjusting Nut
68 W-10045 Spring Collar
69 W-10020 Operating Spring
70 W-10035 Spring Rod Pin
71 W-10012-A Assembled Spring Rod
72 W-10094-A Spring Rod
73 FP-24B47 Bearing
74 52927-017-60 Grease Fitting
76 W-10001-A Assembled Magnet
77 W-10017 Magnet Case
78 W-10040 Magnet Adjusting Screw
79 W-10088 Magnet Adjusting Nut
80 W-10092 Washer
81 W-10080 Lock Nut
82 W-10090 Lead Clamp Stud
83 Flat Washer, Plated
84 Plated Lock Washer
85 W-10091 Lead Clamp
86 Hex Nut, Plated
88 Hex Head Cap Screw, Plated
89 Plated Lock Washer
90 W-10089 Terminal Shield
92 W-10029 Lead Bushing
93 Drive Screw
95 R.I. Screw
96 Plated Lock Washer
97 W-10024 Dust Shield
0 W-10113 Spring, 12 1/2% Of Std. Torque
0 W-10265-A Shunt Coil, 115 VDC
0 W-10254-A Coil, 16-20 HP
0 W-10118 Spring, 50% Of Std. Torque
0 W-10264-A Shunt Coil
0 W-10039 Lead Gasket
0 FP-25A18 Compression Fitting
0 FP-25A17 Compression Fitting
0 FP-25A16 Grease Fitting
0 FP-25A15 Grease Fitting
