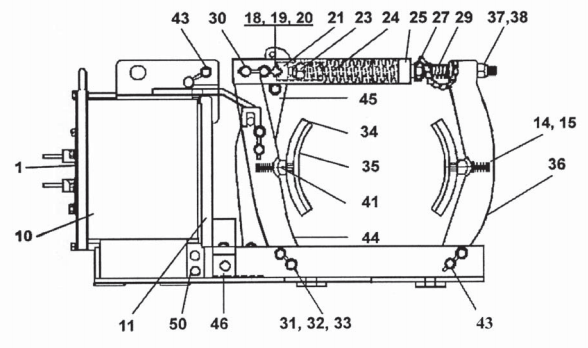

Ohio Contact replacement crane controls for Square D Class 5010 16" Type F Series B. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 50906-223-01 | Magnet Case Cover |
| 4 | 50906-230-01 | Terminal Shield |
| 5 | 50906-166-01 | Lead Bushing |
| 6 | 29206-00665 | O" Ring |
| 8 | 21008-06120 | Drive Screw |
| 10 | 50906-218-50 | Magnet Case & Base Assembly |
| 11 | 50906-215-50 | Armature |
| 12 | 29005-66446 | Bearing |
| 13 | 50906-228-50 | Centering Bracket |
| 14 | 50901-010-04 | Centering Bracket Spring |
| 14 | 50903-404-02 | Lining Wear Indicator |
| 18 | 50903-407-02 | Latch Pin |
| 19 | 29907-03210 | E" Ring |
| 20 | 50901-010-06 | Latch Pin Spring |
| 21 | 50906-117-50 | Connecting Rod Assembly |
| 23 | 50903-405-01 | Spring Seat |
| 24 | WB-416 | Brake Spring |
| 25 | 50906-137-50 | Yoke |
| 26 | 50906-141-01 | Calibration Plate |
| 27 | 50906-136-50 | Manual Release Nut |
| 29 | 50901-010-05 | Connecting Rod Spring |
| 30 | 50903-401-05 | Pin |
| 31 | 50903-402-02 | Locking Pin |
| 34 | 50906-101-50 | Brake Shoes w/Lining |
| 35 | 50903-808-54 | Shoe Lining Kit |
| 36 | 50906-127-50 | Outboard Shoe Lever |
| 37 | 50903-411-52 | Elastic Stop Nut Assembly |
| 43 | 50903-401-04 | Pin |
| 44 | 50906-129-50 | Inboard Shoe Lever |
| 45 | 50906-119-50 | Connecting Rod Lever |
| 46 | 50906-115-50 | Connecting Link |
| 47 | 50903-401-06 | Pin |
| 50 | 50906-226-01 | Armature Gap Indicator |
| 60 | 50903-805-54 | Self-Adj. Shoe Mechanism Kit |
| 62 | 50906-158-01 | Connecting Rod |
| 63 | 29013-02120 | Connecting Rod Bearing |
| 68 | 29005-24121 | Bearing |
| 71 | 50906-164-50 | Crank Assembly |
| 72 | 50906-160-01 | Ratchet Rod |
| 73 | 50903-415-03 | Crank Pin |
| 74 | 50906-165-50 | Ratchet Rod End Block |
| 76 | 50901-003-02 | Spring |
| 77 | 50906-154-50 | Star Wheel Stop Nut Assembly |
| 78 | 50906-161-01 | Ratchet Rod Guide |
| 80 | 29005-32221 | Oilite Bearing |
