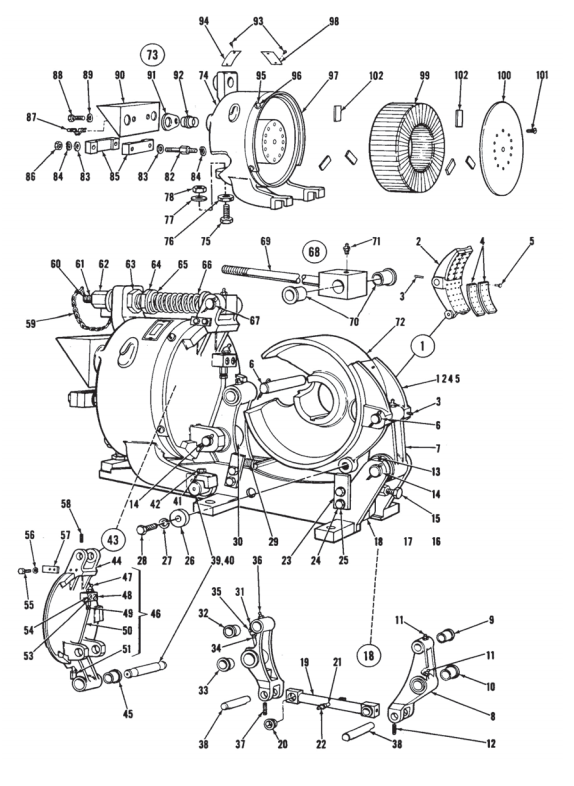

Ohio Contact replacement crane controls for Square D Class 5010 19" Type WB Brake, Folio 5. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | W-19004-A | Assembled Brake Shoe Complete |
| 2 | W-19005 | Brake Shoe |
| 3 | 22903-24200 | Set Screw |
| 4 | W-19043 | Brake Block |
| 5 | W-19327 | Rivet |
| 6 | W-19032 | Shoe Pin |
| 7 | W-19006-A | Assembled Shoe Lever Complete |
| 8 | W-19008-A | Assembled Shoe Lever |
| 9 | 29005-66446 | Bearing |
| 10 | 29005-72600 | Bearing |
| 11 | 25209-20400 | Grease Fitting |
| 12 | 22903-24200 | Set Screw |
| 13 | 22903-28240 | Set Screw |
| 14 | W-19033 | Shoe Lever Pin |
| 15 | W-16027 | Screw |
| 16 | W-16042 | Lock Nut |
| 17 | W-19018-A | Assembled Frame, Complete |
| 18 | W-19167-A | Assembled Connecting Rod Comp. |
| 19 | W-19166-A | Connecting Rod |
| 20 | 29005-66447 | Bearing |
| 21 | 25223-46480 | Pipe Nipple |
| 21 | 25223-46640 | Pipe Nipple |
| 22 | 25209-30400 | Grease Fitting |
| 22 | 25209-20400 | Grease Fitting |
| 23 | W-19161 | Cam Rail |
| 24 | 27303-00220 | Shakeproof Lock Washer |
| 25 | 21401-22320 | Hex Steel Cap Screw |
| 26 | W-23125 | Adjusting Ring |
| 27 | 23701-00280 | Lock Washer |
| 28 | 21401-28320 | Hex. Stl. Cap Screw |
| 29 | W-19021 | Centering Spring |
| 30 | W-19007-A | Assembled Shoe Lever Complete |
| 32 | 29005-66446 | Bearing |
| 33 | 29005-72600 | Bearing |
| 34 | W-19008-A | Assembled Shoe Lever |
| 34 | 25223-46680 | Pipe Nipple |
| 35 | 25209-20400 | Grease Fitting |
| 36 | 25209-30400 | Grease Fitting |
| 37 | 22903-24200 | Set Screw |
| 38 | W-19098 | Connecting Rod Pin |
| 39 | W-19159 | Magnet Hinge Pin |
| 40 | W-19160 | Pin Collar |
| 41 | 23701-00360 | Pl. Lock Washer |
| 42 | 21401-36680 | H.I. Cap Screw |
| 43 | W-19002-A | Assembled Armature |
| 44 | W-19003-A | Armature |
| 45 | 29005-72600 | Bearing |
| 46 | W-19047-A | Assembled Grease Unit, Comp. |
| 47 | 25209-10400 | Grease Fitting |
| 48 | W-13026 | Header Block |
| 49 | 25208-90160 | Compression Fitting |
| 50 | W-19048 | Tube |
| 51 | 25208-90161 | Compression Fitting |
| 52 | 22903-28240 | Set Screw |
| 53 | 21507-20400 | P.H.S. Screw |
| 54 | 23701-00200 | Pl. Lock Washer |
| 55 | 21401-20200 | H.I. Cap Screw |
| 56 | 23701-00200 | Pl. Lock Washer |
| 57 | W-19049 | Air Gap Indicator |
| 58 | 22903-24200 | Set Screw |
| 60 | 21008-07160 | Lg. Type "U" Drive Screw |
| 61 | 24201-12680 | Cotter Pin |
| 62 | W-19022 | Manual Release Nut |
| 63 | W-19041 | Lock Nut |
| 64 | W-19023 | Spring Adjusting Nut |
| 65 | W-19045 | Spring Collar |
| 66 | W-19020 | Operating Spring |
| 66 | W-19154 | Spring, 50% Of Std. Torque |
| 67 | W-19035 | Spring Rod Pin |
| 68 | W-19012-A | Assembled Spring Rod Complete |
| 69 | W-19094-A | Spring Rod |
| 70 | 29005-64405 | Bearing |
| 71 | 25209-20400 | Grease Fitting |
| 73 | W-19201-A | Assembled Magnet, Complete |
| 74 | W-19287-A | Magnet Case |
| 75 | W-19040 | Magnet Adjusting Screw |
| 76 | W-19088 | Magnet Adjusting Nut |
| 77 | W-19092 | Washer |
| 78 | W-19080 | Lock Nut |
| 79 | W-23123 | Stop Bracket |
| 80 | 21401-22160 | H. Stl. Cap Screw |
| 81 | 23703-00220 | Shakeproof Lk. Washer |
| 82 | W-19090 | Lead Clamp Stud |
| 83 | 23601-00240 | Washer |
| 84 | 23701-00240 | Pl. Lock Washer |
| 85 | W-19091 | Lead Clamp |
| 86 | 23001-00240 | H.I. Nut |
| 88 | 21401-24240 | H.I. Cap Screw |
| 89 | 23701-00240 | Pl. Lock Washer |
| 90 | W-19089 | Terminal Shield |
| 91 | W-19039 | Gasket |
| 93 | 21008-06080 | Drive Screw |
| 95 | 21410-20160 | Hex Type E Screw |
| 96 | 23701-00200 | Pl. Lock Washer |
| 97 | W-19024 | Dust Shield |
| 98 | 19" WB | Calibration Plate |
| 99 | W-19055 | Coil |
| 99 | W-19286 | Coil |
| 100 | W-19157 | Retaining Plate |
| 101 | 21721-22200 | Hex Socket Flat Hd. Cap Screw |
| 0 | W-19009-A | Assembled Connecting Rod |
| 0 | 50502-526-09 | Equalizing Screw |
| 0 | W-19149 | Cam Rail |
| 0 | W-19028 | Steel Base Bushing |
| 0 | W-19029 | Lead Bushing (strap wound) |
| 0 | W-19095-A | Connecting Rod |
| 0 | W-19030 | Magnet Hinge Pin |
| 0 | W-19087-A | Magnet Case |
| 0 | W-19001-A | Assembled Magnet, Complete |
| 0 | W-19039 | Lead Gasket |
| 0 | W-19025 | Cam Rail |
| 0 | W-19031 | Connecting Rod Pin |
| 0 | W-19079 | Lead Bushing (wire wound) |
