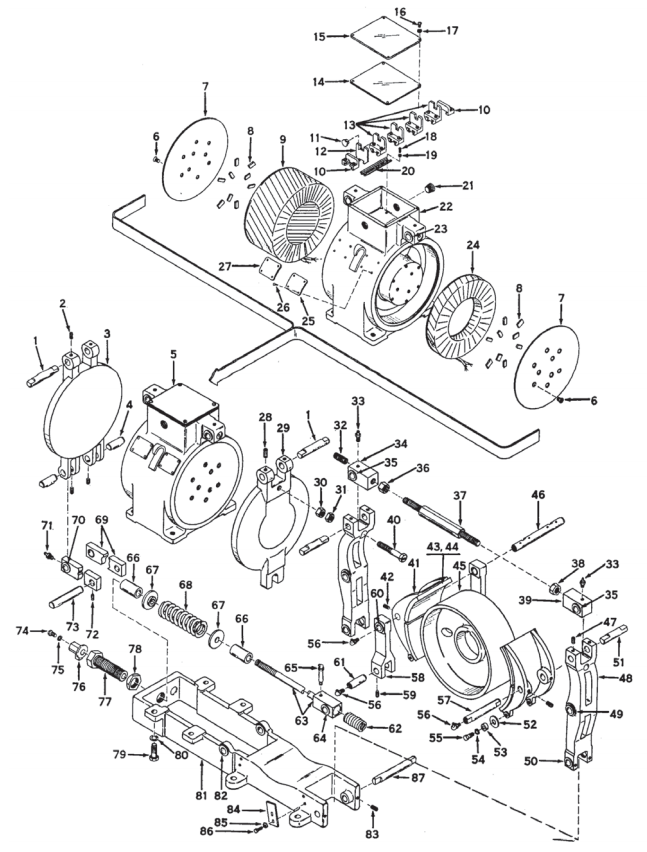

Ohio Contact replacement crane controls for Square D Class 5060 13" Type AT Adjustable Torque Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | AT-13027 | Armature |
| 2 | AT-13002-A | Main Armature |
| 3 | AT-13003 | Armature |
| 4 | AT-13030 | Link Rod |
| 5 | AT-13001-A | Magnet Assembly |
| 7 | W-13187 | Coil Retaining Plate |
| 8 | W-8086 | Coil Spacer |
| 10 | 1828-D57-G1 | End Clamp Assembly |
| 12 | 1828-C18-X1 | Barrier |
| 13 | 1828-D54-G1 | Terminal Block Assembly |
| 14 | AT-13040 | Terminal Box Gasket |
| 15 | AT-13031 | Terminal Box Cover |
| 20 | 1828-C22-X4 | Mounting Track |
| 22 | AT-13018 | Magnet Case |
| 23 | FP-24B40 | Bearing |
| 26 | AT-13024 | Nut, R.H. |
| 27 | AT-13005-A | Auxiliary Armature Assembly |
| 29 | AT-13004-A | Auxiliary Armature |
| 32 | AT-13008-A | Connecting Rod |
| 34 | AT-13010 | Connecting Rod |
| 35 | FP-24J14 | Bearing |
| 37 | AT-13009 | Connecting Rod |
| 38 | AT-13038 | Nut, L.H. |
| 39 | AT-13011 | Connecting Rod |
| 40 | AT-13034 | Equalizing Screw |
| 41 | W-13005 | Shoe |
| 41 | W-13004-A | Shoe Assembly |
| 42 | W-13043 | Brake Block |
| 44 | W-13046 | Rivet |
| 46 | AT-13046 | Right Shoe Pin |
| 47 | AT-13006-A | Shoe Lever Assembly |
| 48 | AT-13007 | Shoe Lever |
| 49 | FP-24B40 | Bearing |
| 50 | FP-24J14 | Bearing |
| 51 | AT-13028 | Connecting Rod |
| 52 | MT-691 | Equalizer Screw |
| 53 | W-16163 | Adjusting Ring |
| 57 | AT-13047 | Left Shoe Pin |
| 58 | AT-13039 | Anti-Drag Lever |
| 60 | FP-24B40 | Bearing |
| 61 | AT-13029 | Pin |
| 62 | AT-13022 | Release Spring |
| 63 | AT-13012A | Spring Rod |
| 64 | FP-24J14 | Bearing |
| 66 | AT-13032 | Spacer |
| 67 | AT-13033 | Spring Collar |
| 68 | AT-13015-A | Armature Link Assembly |
| 68 | W-13020 | Operating Spring |
| 69 | AT-13016 | Armature Link |
| 70 | FP-24B40 | Bearing |
| 71 | 52927-017-60 | Grease Fitting |
| 73 | AT-13025 | Spring Rod Pin |
| 76 | W-13022 | Manual Release Nut |
| 77 | W-13076 | Spring Adjusting Nut |
| 78 | WB-6115 | Special Nut |
| 80 | AT-13019-A | Frame Assembly |
| 81 | AT-13020 | Frame |
| 82 | FP-24J13 | Bearing |
| 84 | W-13161 | Rail |
| 87 | AT-13026 | Right Shoe Lever Hinge Pin |
| 0 | AT-13008-A | Connecting Rod Assembly |
