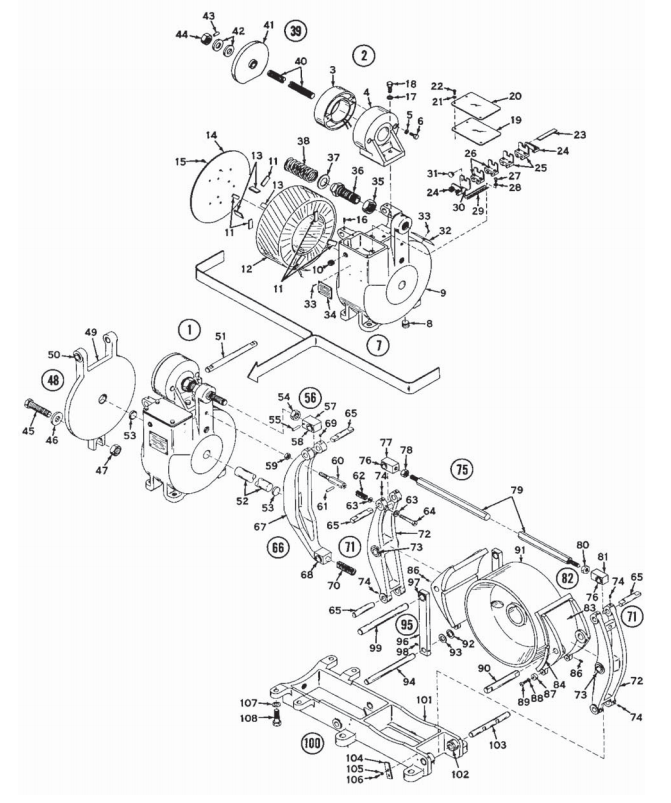

Ohio Contact replacement crane controls for Square D Class 5060 16" Type AT Adjustable Torque Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 51011-056-50 | Magnet Assembly |
| 2 | 51011-047-50 | Parking Magnet Assembly |
| 3 | 50512-154-22 | Coil Spacer |
| 3 | 51011-049-51 | Parking Magnet Coil |
| 4 | 51011-048-01 | Parking Magnet Coil |
| 5 | 23701-00240 | Pl. Lk. Washer |
| 6 | 23401-24280 | Cap Screw |
| 7 | 51011-057-50 | Service Magnet Assembly |
| 9 | 51011-059-01 | Service Magnet Case |
| 11 | W-8086 | Coil Spacer |
| 12 | 51011-024-52 | Service Magnet Coil |
| 14 | 51011-030-01 | Coil Retaining Plate |
| 19 | 51011-031-02 | Terminal Box Gasket |
| 20 | 51011-031-01 | Terminal Box Cover |
| 23 | 1828-C23-X4 | Marking Strip |
| 24 | 1828-D57-G1 | End Clamp Assembly |
| 25 | 1828-D55-G1 | Terminal Block Assembly |
| 26 | 1828-D54-G1 | Terminal Block Assembly |
| 29 | 1828-C22-X4 | Mounting Track |
| 30 | 1828-C18-X1 | Barrier |
| 31 | 1828-D71-X1 | Nylon Plug |
| 34 | 51139-028-03 | Calibration Plate |
| 35 | 50502-551-04 | Spring Adjuster Nut |
| 36 | 51011-018-01 | Spring Adjuster |
| 37 | 50502-003-44 | Spring Adjuster Washer |
| 38 | W-16154 | Operating Spring |
| 39 | 51011-061-51 | Spring Rod Assembly |
| 40 | 51011-050-01 | Spring Rod |
| 41 | 51011-058-01 | Parking Magnet Armature |
| 42 | 23690-01650 | Spherical Washer |
| 43 | 24209-12480 | Roll Pin |
| 44 | 51009-053-02 | Special Nut |
| 45 | 21401-38840 | Cap Screw |
| 46 | 50502-003-46 | Armature Stop Washer |
| 47 | 23002-00380 | H.Nut |
| 48 | 51011-011-50 | Service Brake Armature Assy |
| 49 | 51011-011-01 | Service Brake Armature |
| 50 | FP-24J19 | Bushing |
| 51 | 51011-036-01 | Pin |
| 52 | 51011-020-01 | Thrust Pin |
| 53 | 51011-019-01 | Thrust Pad |
| 54 | 23004-00400 | H. Nut |
| 55 | 24209-12480 | Roll Pin |
| 56 | 51011-022-50 | Spring Rod Link Assembly |
| 57 | 51011-022-01 | Spring Rod Link |
| 58 | FP-24J19 | Bushing |
| 59 | 23003-00320 | Jam Nut |
| 60 | 51011-063-01 | Centering Spring Stud |
| 61 | 24209-08241 | Roll Pin |
| 62 | 50502-601-43 | Centering Spring |
| 63 | 23601-00280 | Washer |
| 64 | 21401-28720 | Cap Screw |
| 65 | AT-13028 | Connecting Rod |
| 66 | 51011-015-50 | L-Lever Assembly |
| 67 | 51011-015-01 | L-Lever |
| 68 | FP-24J19 | Bushing |
| 69 | 22903-24200 | Set Screw |
| 70 | 50502-601-22 | Release Spring |
| 71 | 51011-014-50 | Shoe Lever Assembly |
| 72 | 51011-014-01 | Shoe Lever |
| 73 | FP-24B32 | Shaft Bushing |
| 74 | 22903-24200 | Set Screw |
| 75 | 51011-016-50 | Connecting Rod Assembly |
| 76 | FP-24J19 | Bushing |
| 77 | 51011-029-50 | Link, R.H. |
| 78 | 50502-551-06 | Nut |
| 79 | 50502-326-19 | Connecting Rod |
| 80 | 50502-551-05 | H. St. Nut, L.H. |
| 81 | 51011-029-51 | Link, L.H. |
| 82 | W-16004-A | Assembled Brake Shoe, Complete |
| 83 | W-16005-A | Brake Shoe |
| 84 | W-16043 | Brake Block |
| 85 | W-16046 | Rivet |
| 86 | 22903-24200 | Set Screw |
| 87 | W-16163 | Shoe Adjusting Cam |
| 90 | W-16032 | Shoe Pin |
| 92 | WB-3227 | Washer |
| 93 | 50502-003-45 | Drag Link Spacer |
| 94 | 51011-036-01 | Pin |
| 95 | 51011-017-50 | Drag Link Assembly |
| 96 | 51011-017-01 | Drag Link |
| 97 | FP-24B44 | Bearing |
| 98 | 22903-24200 | Set Screw |
| 99 | 51011-036-02 | Shoe Pin |
| 100 | 51011-010-50 | Frame Assembly |
| 101 | 51011-010-01 | Frame |
| 102 | FP-24J19 | Bushing |
| 103 | 51011-036-03 | Shoe Lever Pin |
| 104 | W-16162 | Rail |
