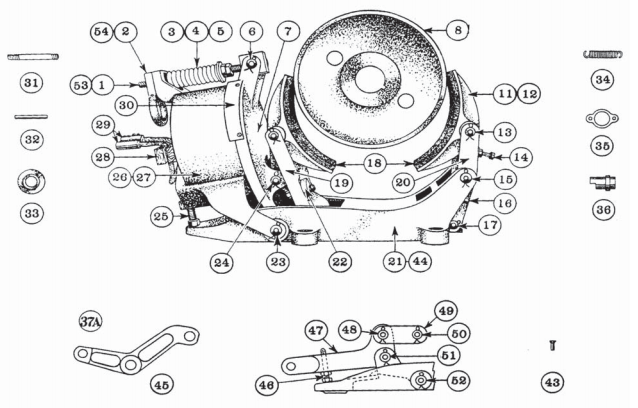

Ohio Contact replacement crane controls for Square D EC&M No. 10 Type WB Brake, Folio 2. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | WB-183-A | Spring Rod , with Nuts |
| 2 | WB-181 | Handle |
| 3 | WB-116 | Brake Spring |
| 6 | WB-125 | Spring Rod Pin |
| 7 | WB-187-A | Armature |
| 8 | WB-132-A | Wheel |
| 11 | WB-110-A | Assembled Shoe |
| 12 | WB-104 | Brake Shoe |
| 13 | WB-120 | Shoe Pin |
| 15 | WB-122 | Shoe Lever Hinge Pin |
| 16 | WB-133 | Equalizing Screw |
| 17 | WB-124 | Connecting Rod Pin |
| 18 | WB-118 | Brake Lining |
| 19 | WB-105 | Shoe Lever (Armature End) |
| 20 | WB-185-A | Shoe Lever With Spring Pin |
| 21 | WB-189-A | Frame |
| 23 | WB-123 | Magnet Hinge Pin |
| 24 | WB-121 | Armature Pin |
| 25 | WB-434 | Special Cap Screw |
| 26 | WB-190-A | Assembled Magnet |
| 27 | WB-188-A | Magnet Case |
| 28 | Q-164 | Lead Block |
| 30 | WB-1163 | Dust Shield |
| 31 | Q-165 | Lead Block Stud |
| 32 | WB-119 | Centering Spring Pin |
| 33 | WB-114 | Spring Collar |
| 34 | WB-126 | Centering Spring |
| 37 | WB-109 | Retaining Plate, Brass |
| 40 | WB-186-A | Balance Lever |
| 41 | WB-106 | Connecting Rod |
| 43 | WB-159 | Lining Rivet |
| 46 | WB-134 | Shoe Adjusting Screw |
| 0 | WB-1129-A | Coil |
| 0 | WB-1132-A | Coil, 5-8 HP |
| 0 | 51001-071-59 | Brake Block Kit |
| 0 | WB-1133-A | Coil |
| 0 | WB-162 | Bushing, Armature/Upper |
| 0 | WB-161 | Bushing, Magnet Case |
| 0 | WB-164 | Bushing, Frame/Upper |
| 0 | WB-165 | Bushing, Shoe Lever |
| 0 | WB-163 | Bushing, Armature-Frame/Upper |
