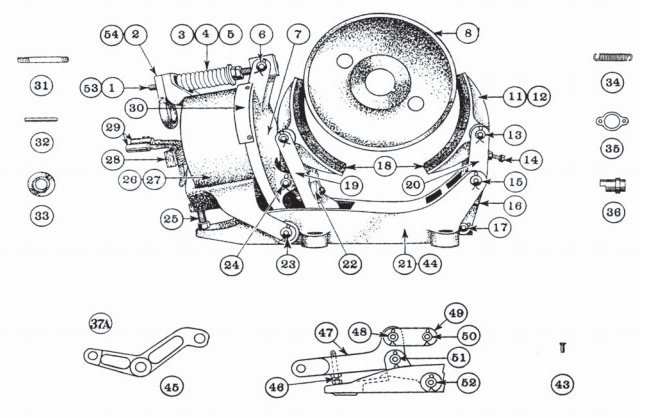

Ohio Contact replacement crane controls for Square D EC&M No. 30 Type WB Brake, Folio 2. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | WB-383-A | Spring Rod with Nuts |
| 2 | WB-381 | Handle |
| 3 | WB-316 | Operating Spring |
| 6 | WB-325 | Spring Rod Pin |
| 7 | WB-387-A | Armature |
| 11 | WB-3200-A | Assembled Shoe, Complete |
| 12 | WB-3317-A | Brake Shoe |
| 13 | WB-320 | Shoe Pin |
| 15 | WB-322 | Shoe Lever Hinge Pin |
| 16 | WB-235 | Equalizing Screw |
| 17 | WB-324 | Connecting Rod Pin |
| 18 | WB-318 | Brake Lining |
| 19 | WB-305 | Shoe Lever |
| 20 | WB-385-A | Shoe Lever With Spring Pin |
| 21 | WB-389-A | Frame |
| 22 | WB-332-A | Shoe Adjusting Wheel w/ Screw |
| 23 | WB-322 | Shoe Lever Hinge Pin |
| 24 | WB-321 | Armature Pin |
| 25 | WB-333 | Special Cap Screw |
| 26 | WB-3184-A | Assembled Magnet |
| 27 | WB-3174-A | Magnet Case |
| 28 | Q-368 | Lead Block |
| 30 | WB-315 | Dust Shield |
| 31 | Q-369 | Lead Block Stud |
| 32 | WB-319 | Spring Pin |
| 33 | WB-314 | Spring Collar |
| 34 | WB-326 | Centering Spring |
| 35 | WB-329 | Terminal Guard |
| 36 | WB-303 | Terminal Bushing |
| 37 | WB-309 | Retaining Plate, Brass |
| 37 | WB-3183 | Retaining Plate |
| 40 | WB-308 | Balance Lever |
| 41 | WB-3217-A | Connecting Rod |
| 43 | WB-366 | Rivet |
| 46 | WB-355 | Shoe Adjusting Screw |
| 50 | WB-345 | Armature Pin |
| 0 | WB-363 | Bushing, Armature/Lower |
| 0 | WB-3144-A | Coil |
| 0 | WB-362 | Bushing, Armature |
| 0 | WB-365 | Bushing, Shoe Lever |
| 0 | WB-364 | Bushing, Frame |
| 0 | WB-361 | Bushing |
| 0 | WB-31XX | Coil, 50 HP |
