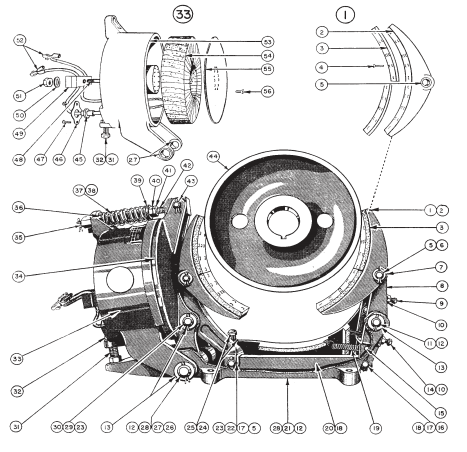

Ohio Contact replacement crane controls for Square D EC&M No. 50 Type WB Brake, Folio 3. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | WB-5200-A | Assembled Shoe, Complete |
| 3 | WB-518 | Brake Lining |
| 4 | WB-559 | Lining Rivet |
| 5 | FP-24B28 | Bearing |
| 6 | WB-5213 | Shoe Pin |
| 7 | WB-629 | Washer |
| 8 | WB-5204-A | Shoe Lever |
| 9 | WB-5244 | Shoe Adjusting Screw |
| 11 | WB-5240 | Shoe Lever Pin |
| 12 | FP-24B31 | Bearing |
| 12 | WB-5317-A | Brake Shoe |
| 13 | WB-627 | Washer |
| 14 | WB-5243 | Equalizing Screw |
| 15 | WB-519 | Centering Spring Pin |
| 16 | WB-524 | Connecting Rod Pin |
| 17 | FP-24B25 | Bearing |
| 18 | FP-24C14 | Bearing |
| 19 | WB-526 | Centering Spring |
| 20 | WB-5217-A | Connecting Rod |
| 21 | WB-5186-A | Frame, Complete |
| 22 | WB-5202-A | Shoe Lever |
| 23 | FP-24B15 | Bearing |
| 23 | FP-24C15 | Bearing |
| 24 | WB-4215 | Shoe Adjusting Screw |
| 26 | WB-5223 | Magnet Hinge Pin |
| 27 | FP-24B30 | Bearing |
| 28 | FP-24C16 | Bearing |
| 29 | WB-5222 | Armature Pin |
| 30 | FP-24B29 | Bearing |
| 31 | WB-533 | Special Cap Screw |
| 33 | WB-5312-A | Assembled Magnet, Complete |
| 34 | WB-5190-A | Armature |
| 35 | WB-5236-A | Spring Rod Nut |
| 36 | WB-5239 | Spring Retainer |
| 37 | WB-516 | Operating Spring (Large) |
| 38 | WB-536 | Operating Spring (Small) |
| 39 | WB-514 | Spring Collar |
| 42 | WB-4234-A | Spring Rod |
| 43 | WB-525 | Spring Rod Pin |
| 45 | WB-503 | Terminal Bushing |
| 46 | WB-529 | Terminal Guard |
| 48 | Q-369 | Lead Block Stud |
| 49 | Q-368 | Lead Block |
| 53 | WB-5192-A | Magnet Case, Complete |
| 55 | WB-5183 | Retaining Plate, Steel |
| 0 | WB-5140-A | Coil |
| 0 | WB-5143-A | Shunt Coil |
