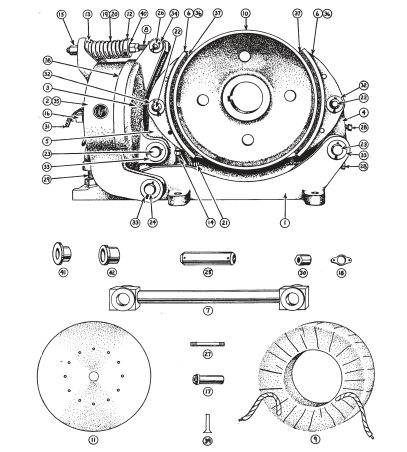

Ohio Contact replacement crane controls for Square D EC&M No. 60 Type WB Brake, Folio 1. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
Item No. | OEM No. | Description |
---|---|---|
1 | WB-689-A | Frame |
2 | WB-6174-A | Magnet Case |
3 | WB-6112-A | Armature W/Dust Shield |
4 | WB-685-A | Shoe Lever |
5 | WB-686-A | Shoe Lever |
6 | WB-610-A | Assembled Shoe W/Lining |
7 | WB-6070-A | Connecting Rod |
8 | WB-683-A | Spring Rod W/Nuts |
11 | WB-6183 | Retaining Plate |
12 | WB-614 | Spring Retainer |
13 | WB-6061 | Spring Retainer |
14 | WB-6114 | Shoe Adjusting Screw |
15 | WB-6012 | Spring Rod Nut |
16 | WB-6168 | Lead Block |
17 | WB-603 | Terminal Bushing |
18 | Q-305 | Terminal Guard |
19 | WB-6179 | Operating Spring |
20 | WB-636 | Operating Spring, Inner |
21 | WB-626 | Centering Spring |
22 | WB-620 | Shoe Pin |
23 | WB-622 | Shoe Lever Hinge Pin |
24 | WB-623 | Magnet Hinge Pin |
25 | WB-624 | Connecting Rod Pin |
26 | WB-625 | Spring Rod Pin |
27 | WB-6171 | Lead Block Stud |
28 | WB-634 | Shoe Adjusting Screw |
29 | WB-633 | Magnet Adjusting Screw |
30 | WB-6169 | Spl. Nut For Adj. Screw |
32 | WB-627 | Washer |
33 | WB-628 | Washer |
34 | WB-629 | Washer |
36 | WB-6069-A | Brake Shoe Only |
37 | WB-618 | Brake Lining |
38 | WB-615 | Dust Shield |
39 | WB-659 | Rivet |
40 | WB-630 | Thrust Washer |
41 | FP-24B10 | Bearing |
42 | FP-24B11 | Bearing |
0 | 51001-071-65 | Brake Block Kit |
