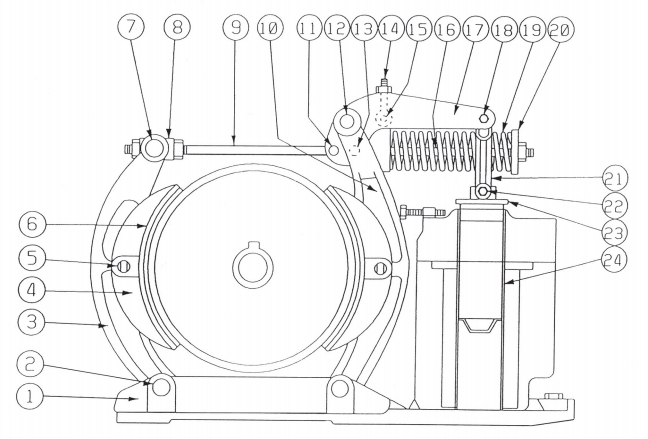

Ohio Contact replacement crane controls for Westinghouse Type DI 104-F Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 0 | 1312809 | Bushing |
| 0 | 1303364 | Bushing |
| 0 | 1303363 | Rod Bushing |
| 0 | 1303362 | Pivot Bushing |
| 0 | 1303361 | Bushing, Upper |
| 0 | 1303360 | Bushing, Lower |
| 0 | 1303359 | Bushing, Upper |
| 0 | 831523 | Operating Magnet |
| 0 | 486346 | Air Gap Spacer |
| 0 | 486339 | Operating Magnet |
| 24 | 518901 | Plunger Guide Bushing |
| 23 | 575652 | Plunger |
| 22 | 1303368 | Link Pin, Lower |
| 21 | 550882 | Connecting Link |
| 20 | 492907 | Spring Seat |
| 19 | 429730 | Spring |
| 18 | 1303367 | Link Pin, Upper |
| 17 | 1397947 | Brake Lever |
| 16 | 487655 | Spring Rod |
| 15 | 487663 | Hand Release Rod Pin |
| 14 | 487657 | Hand Release Rod |
| 13 | 1303369 | Spring Rod Pin |
| 12 | 1303366 | Brake Lever Pivot Pin |
| 11 | 1303365 | Connecting Rod Pin |
| 10 | 1397946 | Brake Arm, Rear |
| 9 | 487642 | Connecting Rod |
| 8 | 766192 | Hinge Block |
| 7 | 1303371 | Brake Arm Pin, Upper |
| 6 | 487566 | Lining |
| 5 | 822258 | Brake Shoe Pivot Bolt |
| 4 | 492908 | Brake Shoe w/Lining |
| 3 | 1397945 | Brake Arm Front |
| 2 | 1303366 | Brake Arm Pin, Lower |
| 1 | 1496813 | Base |
