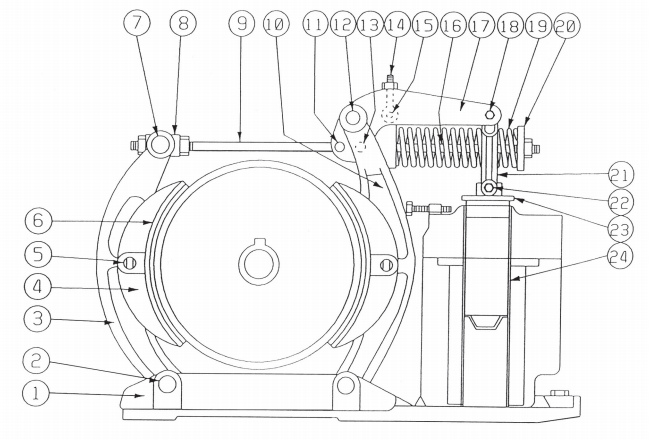

Ohio Contact replacement crane controls for Westinghouse Type DI 135-F Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 0 | 13033 | Brake Lever Pivot Pin |
| 0 | 1216260 | Rear Arm Bushing-Upper |
| 0 | 1216259 | Front Arm Bushing-Upper |
| 0 | 486360 | Type DI-Opert. Mag. w/out Coil |
| 0 | 1216261 | Arm Bushing-Lower |
| 0 | 1216262 | Pivot Bushing |
| 0 | 487546 | Air Gap Spacer |
| 0 | 1216264 | Base Bushing |
| 0 | 1216263 | Rod Bushing |
| 24 | 518904 | Plunger Guide Bushing |
| 23 | 575646 | Plunger |
| 22 | 1303455 | Link Pin-Lower |
| 21 | 532049 | Connecting Link |
| 20 | 492909 | Spring Seat |
| 19 | 486361 | Spring |
| 18 | 1303454 | Link Pin-Upper |
| 17 | 1397950 | Brake Lever |
| 16 | 1197661 | Spring Rod |
| 15 | 487663 | Hand Realease Rod Pin |
| 14 | 487741 | Hand Realease Rod |
| 13 | 1303451 | Spring Rod Pin |
| 12 | 1303449 | Brake Lever Pivot Pin |
| 11 | 1303451 | Connecting Rod Pin |
| 10 | 1397949 | Brake Arm-Rear |
| 9 | 1197660 | Connecting Rod |
| 8 | 766652 | Hinge-Block |
| 7 | 1254392 | Brake Arm Pin-Upper |
| 6 | 514510 | Lining |
| 5 | 514509 | Brake Shoe Pivot Bolt |
| 4 | 490362 | Brake Shoe w/ Lining |
| 3 | 1397948 | Brake Arm -Front |
| 2 | 1303450 | Brake Arm Pin-Lower |
| 1 | 1496818 | Base |
