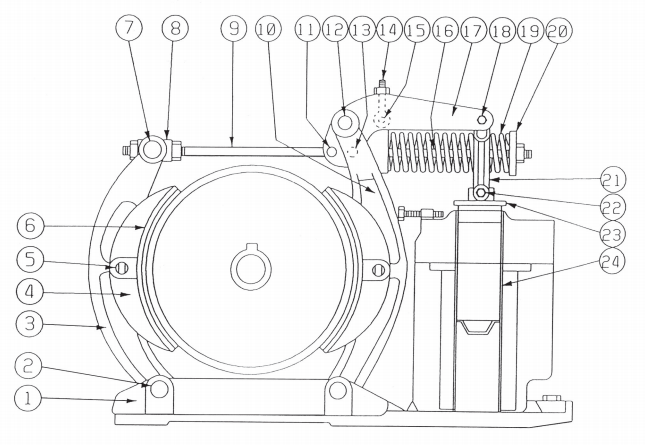

Ohio Contact replacement crane controls for Westinghouse Type DI 167-F Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 0 | 1216265 | Base Bushing |
| 0 | 501539 | Type DI-Operat. Mag. w/out Coil |
| 0 | 1216266 | Front Arm Bushing-Upper |
| 0 | 502847 | Air Gap Spacer |
| 0 | 1216267 | Arm Bushing-Lower |
| 0 | 104213 | Brake Arm Adjusting Assembly |
| 0 | 1216270 | Rear Arm Bushing-Upper |
| 0 | 1216269 | Rod Bushing |
| 0 | 1216268 | Pivot Bushing |
| 24 | 575654 | Plunger Guide Bushing |
| 23 | 884839 | Plunger |
| 22 | 1303456 | Link Pin-Lower |
| 21 | 532213 | Connecting Link |
| 20 | 502844 | Spring Seat |
| 19 | 502833 | Spring |
| 18 | 1303457 | Link Pin-Upper |
| 17 | 1397962 | Brake Lever |
| 16 | 1197663 | Spring Rod |
| 15 | 502841 | Hand Release Rod Pin |
| 14 | 502836 | Hand Release Rod |
| 13 | 1303453 | Spring Rod Pin |
| 12 | 1303452 | Brake Arm Pin-Lower |
| 11 | 1303453 | Connecting Rod Pin |
| 10 | 1397961 | Brake Arm-Rear |
| 9 | 1197662 | Connecting Rod |
| 8 | 766658 | Hinge-Block |
| 7 | 1254393 | Brake Arm Pin-Upper |
| 6 | 487562 | Lining |
| 5 | 502843 | Brake Shoe Pivot Bolt |
| 4 | 502832 | Brake Shoe with Lining |
| 3 | 1397960 | Brake Arm-Front |
| 2 | 1303452 | Brake Lever Pivot Pin |
| 1 | 1496819 | Base |
