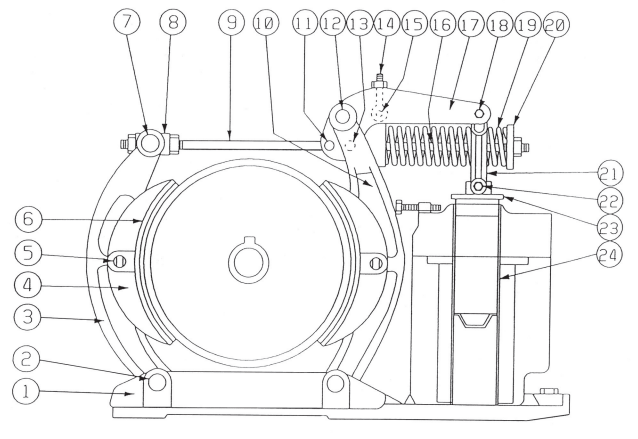

Ohio Contact replacement crane controls for Westinghouse Type DI 198-F Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 0 | 1397969 | Front Arm Bushing-Upper |
| 0 | 1397933 | Base Bushing |
| 0 | 1397970 | Arm Bushing-Lower |
| 0 | 897925 | Coil |
| 0 | 1397971 | Rear Arm Bushing-Upper |
| 0 | 104214 | Brake Arm Adjusting Assembly |
| 0 | 502863 | Ari Gap Spacer |
| 0 | 501545 | Type DI-Opert. Mag. w/out Coil |
| 0 | 1397972 | Rod Bushing |
| 0 | 1397973 | Pivot Bushing |
| 24 | 575656 | Plunger Guide Bushing |
| 23 | 575655 | Plunger |
| 22 | 1439191 | Link Pin-Lower |
| 21 | 529768 | Connecting Link |
| 20 | 502861 | Spring Seat |
| 19 | 502849 | Spring |
| 18 | 1439190 | Link Pin-Upper |
| 17 | 1397953 | Brake Lever |
| 16 | 502851 | Spring Rod |
| 15 | 502858 | Hand Release Rod Pin |
| 14 | 502852 | Hand Release Rod |
| 13 | 1450521 | Spring Rod Pin |
| 12 | 1450524 | Brake Lever Pivot Pin |
| 11 | 1450521 | Connecting Rod Pin |
| 10 | 1397952 | Brake Arm-Rear |
| 9 | 502850 | Connecting Rod |
| 8 | 808771 | Hinge-Block |
| 7 | 1450522 | Brake Arm Pin-Upper |
| 6 | 487563 | Lining |
| 5 | 502860 | Brake Shoe Pivot Bolt |
| 4 | 502848 | Brake Shoe w/ Lining |
| 3 | 1397951 | Brake Arm-Front |
| 2 | 1450523 | Brake Arm Pin-Lower |
| 1 | 1496364 | Base |
