Westinghouse Type TM-1355 Magnetic Shoe Brake

Ohio Contact replacement crane controls for Westinghouse Type TM-1355 Magnetic Shoe Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

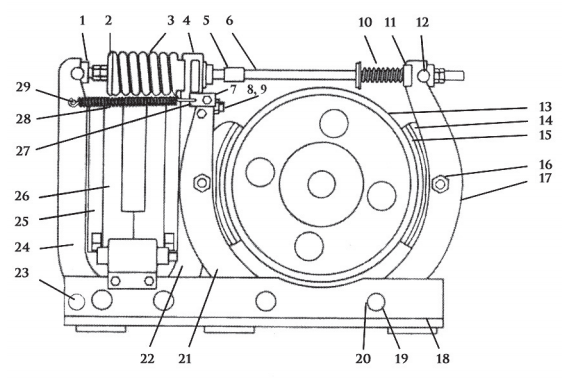

Westinghouse Type TM-1355 Magnetic Shoe Brake

Item No. OEM No. Description
0 31D4114H12 Bushing
0 318B917H04 Seal
29 318B790H04 Pin
28 438A411H05 Spring
27 318B778H04 Spring Clip
26 Coil Give # on Coil
25 318B560G01 Clapper
24 439C203G01 Clapper Arm
23 318B571H04 Pin
22 439C202G01 Clapper & Arm
21 439C192G06 Shoe Arm
20 318B789H04 Pin
19 31D4118H06 Bushing
18 439C204G01 Base
17 24D6387G04 Shoe Arm
16 24D6387G04 Bolt
15 861C691G18 Lining Kit
14 439C201G01 Shoe & Lining
12 318B787H05 Block
11 318B777H04 Spring Plate
10 438A070H09 Spring
8 318B793H04 Asj. Screw
7 438A456H01 Block
6 635C104G04 Tie Rod
5 318B792H04 Release BSNG
4 318B791H04 Block
3 438A072H09 Spring
2 318B795H04 Spring Retain
1 318B788H04 Block
