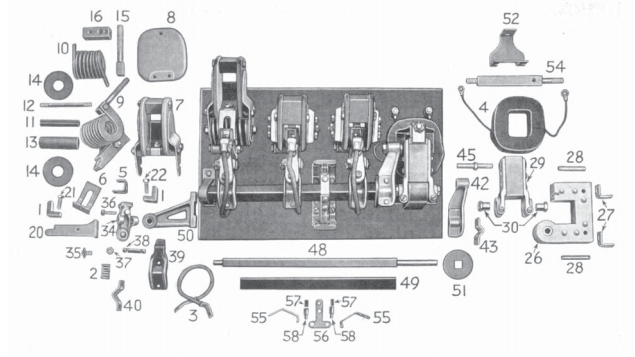

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 100-3L3A. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | A16-1936 | Contact (Main-Mov. & Sta.) |
| 2 | A77-20545 | Contact Spring |
| 3 | A16-8113A | Connector |
| 7 | A18-4950A | Arc Shield Assembly |
| 8 | A18-4972 | Arc Shield Side Plate, RH |
| 8 | A18-4973 | Arc Shield Side Plate, LH |
| 9 | A16-92608A | B/O Coil Assembly |
| 10 | A16-31756 | B/O Coil |
| 11 | A16-1947 | Blowout Core |
| 12 | T-120-201 | Blowout Core Stud |
| 13 | T-39-24 | Blowout Core Insulator |
| 14 | A16-1950 | Blowout Washer |
| 15 | A16-31758 | Blowout Stud, Back Connected |
| 15 | A16-31765 | Blowout Stud, Front Connected |
| 20 | A16-31757 | Contact Stud |
| 21 | T-132-21 | Contact Screw |
| 22 | T-121-13 | Contact Screw |
| 26 | A16-1929A | Magnet Core |
| 27 | A16-1951 | Magnet Core Mounting Angle |
| 28 | T-51-2 | Magnet Core Pin |
| 29 | A16-1930A | Magnet Arm |
| 30 | A16-1952 | Magnet Arm Adj. Bushing |
| 34 | A16-18890A | Moving Contact Support |
| 35 | A18-5065A | Mov Contact Support Adj Screw |
| 36 | T-159-1 | Mov Contact Support Stop Screw |
| 38 | T-37-36 | Moving Cont. Sup. Pin |
| 39 | A16-31753 | Main Contact Arm |
| 40 | A16-1939 | Main Contact Arm Clamp |
| 42 | A16-1940 | Operating Arm |
| 43 | A16-1941 | Operating Arm Clamp |
| 45 | A16-1957 | Operating Stud |
| 48 | TB-5-2 | Shaft, 2 Pole |
| 48 | TB-5-3 | Shaft, 3 Pole |
| 49 | TB-4-2 | Shaft Insulator, 2 Pole |
| 49 | TB-4-3 | Shaft Insulator, 3 Pole |
| 50 | A16-1934 | Shaft Bearing |
| 51 | A16-1964 | Shaft Spacer |
| 52 | A16-1969 | Shading Coil, 60 Cycle |
| 52 | A16-1970 | Shading Coil, 25 Cycle |
| 54 | A16-1960 | Stop Stud, 1-1/4" Slate |
| 55 | A16-10263A | Stationary Tip |
| 56 | A16-10265A | Movable Contact |
| 57 | T-45-24 | Aux. Contact Spring |
| 58 | T-5-1 | Aux. Contact Spring Stud |
