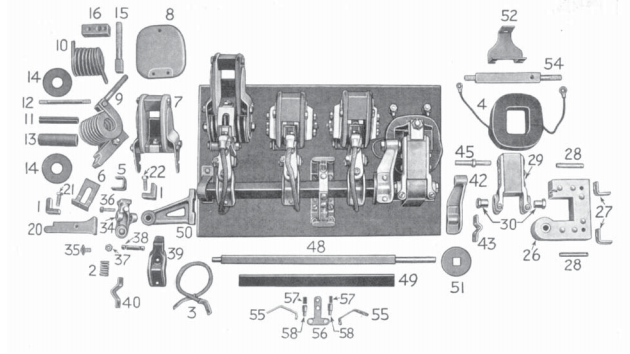

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 150-3R3A. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
Item No. | OEM No. | Description |
---|---|---|
1 | A16-7980 | Contact |
2 | A16-8009 | Contact Spring |
3 | A16-7966A | Connector |
6 | A16-8007 | Arc Horn, Rear |
7 | A16-7965A | Arc Shield Assembly |
8 | A18-3514 | Arc Shield Side Plate |
9 | A16-100636A | B/O Coil Assy, Back Connected |
9 | A16-30558A | B/O Coil Assy, Front Connected |
10 | A16-30549 | Blowout Coil |
11 | A16-8003 | Blowout Core |
12 | T-7-123 | Blowout Core Stud |
13 | T-39-79 | Blowout Core Insulator |
14 | T-38-36 | Blowout Washer |
15 | A18-23690 | Blowout Stud |
16 | A16-30557 | Blowout Terminal |
20 | A18-23691 | Contact Stud |
21 | T-104-1 | Contact Screw |
22 | T-104-1 | Contact Screw |
26 | A16-7967A | Magnet Core |
27 | A16-7989 | Magnet Core Mounting Angle |
28 | T-37-43 | Magnet Core Pin |
29 | A16-7968A | Magnet Arm |
30 | A16-7982 | Magnet Arm Adjusting Bushing |
34 | A16-30548A | Moving Contact Support |
35 | A16-7981A | Adjusting Screw |
36 | T-16-30546 | Moving Cont. Sup. Stop Screw |
37 | A18-9469 | Mov Contact Support Lock Nut |
38 | A18-24296 | Moving Contact Support Pin |
39 | A16-30563A | Main Contact Arm |
40 | A16-7975 | Main Contact Arm Clamp |
42 | A16-13681 | Operating Arm |
43 | A16-7977 | Operating Arm Clamp |
45 | A16-7978 | Operating Stud |
48 | TB-5-14 | Shaft, 2 Pole |
48 | TB-5-15 | Shaft, 3 Pole |
49 | A77-117246A-2 | Shaft Insulator, 2 Pole |
49 | A77-117246A-3 | Shaft Insulator, 3 Pole |
50 | A16-13411A | Shaft Bearing |
51 | A16-8161 | Shaft Spacer |
52 | A16-8011A | Shading Coil, 60 Cycle |
53 | A16-8012A | Shading Coil, 25 Cycle |
54 | A16-7993 | Stop Stud, 1-1/4?Ç¥ Slate |
55 | A16-10264A | Aux. Contact Stationary |
56 | A18-9464A | Auxiliary Contact Bar, Moveable |
57 | T-45-38 | Aux. Contact Spring |
58 | T-13-1 | Aux. Contact Spring Stud |
