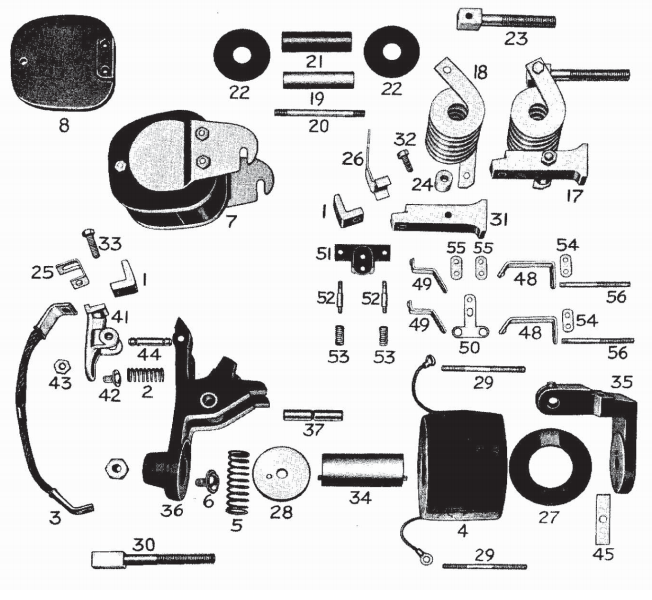

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 400-5RS. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
Item No. | OEM No. | Description |
---|---|---|
1 | A18-5581 | Contact |
3 | A18-5558A | Connector |
4 | TB-30-1 | Coil |
4 | TB-30-2 | Coil, 230V |
4 | TB-30-4 | Coil, 60 VDC |
5 | T-45-210 | Operating Spring |
7 | A18-22028A | Arc Shield, Assembly |
8 | A18-21378 | Arc Shield Side Plate |
9 | T-38-65 | Arc Shield Washer |
10 | T-7-99 | Arc Shield Stud |
11 | T-120-188 | Arc Shield Stud |
12 | A18-22004 | Arc Barrier, Front |
13 | A18-5571 | Arc Barrier, Rear |
15 | A18-5573 | Blowout Ear, R.H. |
16 | A18-5574 | Blowout Ear, L.H. |
17 | A18-23693A | Blowout Coil, Assembly |
18 | A18-23694 | Blowout Coil |
19 | T-24-170 | Blowout Core |
20 | T-7-101 | Blowout Core Stud |
21 | T-39-146 | Blowout Core Insulator |
22 | T-38-56 | Blowout Washer |
23 | A18-23695 | Blowout Stud |
24 | A18-23697 | Blowout Spacer |
25 | A18-5583 | Arc Horn, Front |
26 | A18-152938 | Arc Horn, Rear |
27 | A18-22649 | Coil Washer |
28 | A18-66732 | Coil Clamp |
29 | T-7-47 | Coil Terminal Stud |
29 | T-7-199 | Coil Terminal Stud |
30 | A18-5593 | Connector Stud |
30 | A18-24376 | Connector Stud |
31 | A18-23696 | Contact Stud |
32 | T-104-3 | Contact Screw |
33 | T-104-4 | Contact Screw |
34 | A18-10555A | Core Assembly |
36 | A18-25375A | Frame |
37 | T-66-4 | Main Arm Pin |
38 | A18-9474-6 | Main Arm Bushing, Upper |
39 | A18-9474-12 | Main Arm Bushing, Lower |
40 | T-40-24 | Main Arm Bushing, Lower, Brass |
41 | A18-26294A | Main Contact Support-Back Conn |
42 | A18-5594A | Mov Contact Support Adj. Screw |
43 | T-115-32 | Mov Contact Support Lock Nut |
44 | A18-24297 | Moving Contact Support Pin |
50 | A18-9464A | Auxiliary Contact Bar, Moveable |
51 | A18-5586 | Aux. Contact Insulator |
52 | A18-9477 | Aux. Contact Stud |
53 | A18-9483 | Spring |
54 | A18-2543 | Aux. Contact Base Plate |
55 | A18-2542 | Aux. Contact Plate |
56 | T-7-47 | Coil Terminal Stud |
56 | T-7-36 | Aux. Stud |
56 | T-7-150 | Aux. Stud |
