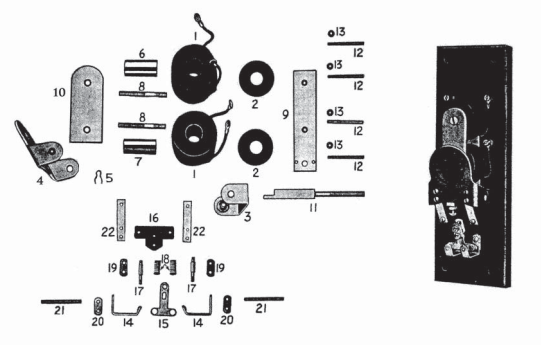

Ohio Contact replacement crane controls for Clark Type P Plugging Relay. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 2 | T-38-17 | Coil Washer |
| 3 | A29-3345A | Magnet Frame Assembled |
| 4 | A29-3342A | Arm Assembled |
| 5 | T-55-3 | Hair Pin Cotter (arm) |
| 6 | A29-3343A | Core Assembled (top) |
| 7 | A29-3344A | Core Assembled (bottom) |
| 8 | T-7-204 | Stud (core) |
| 9 | A29-3351 | Magnet Plate (rear) |
| 10 | A29-3352 | Magnet Plate (front) |
| 11 | A29-3353 | Stop Stud |
| 12 | T-7-44 | Coil Terminal Stud |
| 12 | T-7-55 | Terminal Stud (1" Slate) |
| 12 | T-2-240 | Terminal Stud |
| 13 | T-2-27 | Brass Washer |
| 14 | A18-9465A | Stationary Control Contact |
| 15 | A18-9464A | Auxiliary Contact Bar, Moveable |
| 16 | A18-2544 | Aux. Contact Insulator |
| 17 | A18-9477 | Aux. Contact Stud |
| 18 | A18-9483 | Spring |
| 19 | A18-2542 | Aux. Contact Plate |
| 20 | A18-2543 | Aux. Contact Base Plate |
| 21 | T-7-36 | Aux. Stud |
| 21 | T-7-150 | Aux. Stud |
| 22 | A13-10518 | Auxiliary Contact Bracket |
| 0 | A29-3341A | Magnetic Plugging Relay |
