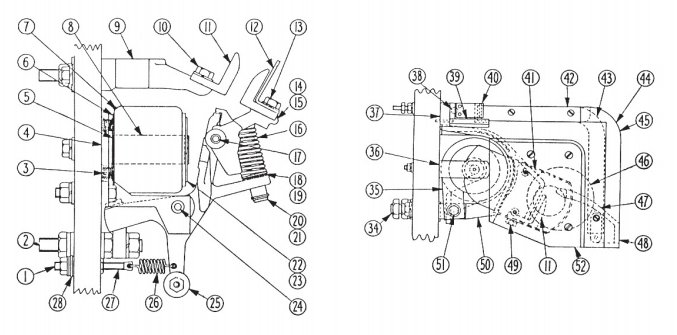

Ohio Contact replacement crane controls for Cutler Hammer No. 542 300 Amp DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 11-1028-3 | Screw |
| 3 | 69-2441 | Spring |
| 4 | 17-207-15 | Magnet Frame |
| 5 | 916-2882Z | Steel Washer |
| 6 | 16-1551-2 | Neoprene Washer |
| 7 | Coil | Give # on Coil |
| 8 | 51-92 | Coil Core |
| 9 | 79-124-4 | Contact Support complete |
| 10 | 911-373 | Long Hex Screw |
| 11 | 23-435 | Contact |
| 12 | 49-99 | Arc Guard |
| 14 | 24-196-2 | Contact Lever |
| 15 | 24-196-5 | Contact Lever w/o Arc Guard |
| 15 | 24-196-15 | Contact Lever with Arc Guard |
| 16 | 69-58 | Spring |
| 17 | 13-84 | Pin |
| 18 | 916-1164Z | Shim Washer .016 Thick |
| 19 | 16-319 | Shim Washer .032 Thick |
| 20 | 13-587 | Adjusting Pin |
| 21 | 29-541 | Spring Ring |
| 22 | 16-252 | Brass Washer |
| 23 | 16-253 | Brakelite Washer |
| 24 | 13-170 | Shaft |
| 25 | 24-215 | Armature Lever |
| 26 | 969-887J | Spring |
| 27 | 14-541 | Adjusting Stud |
| 28 | 4416-841 | Insulating Washer |
| 29 | 6-168-10 | Contact Set |
| 35 | 9-460-162 | Blowout Coil |
| 36 | 79-888 | Support |
| 37 | 17-2294 | Base |
| 38 | 11-1249 | Screw |
| 39 | 17-2292 | Base L.H. |
| 39 | 17-2291 | Base R.H. |
| 40 | 79-1677 | Bracket |
| 41 | 62-208 | Pole Piece |
| 42 | 17-2293 | Side Plate |
| 43 | 25-990 | Connector |
| 44 | 62-233 | Arc Shield Complete |
| 45 | 73-865 | Arc Shield L.H. |
| 45 | 73-864 | Arc Shield R.H. |
| 46 | 73-374 | Arc Shield |
| 47 | 62-93 | Arc Horn |
| 49 | 911-5646Z | Contact Mounting Screw |
| 50 | 62-234-6 | Contact Support Complete |
| 52 | 79-4288 | Support Plate |
| 0 | 62-234 | D-c Blowout Complete |
| 0 | 62-234-2 | D-c Blowout Complete |
| 0 | 62-234-3 | D-c Blowout Complete |
| 0 | 62-234-4 | D-c Blowout Complete |
