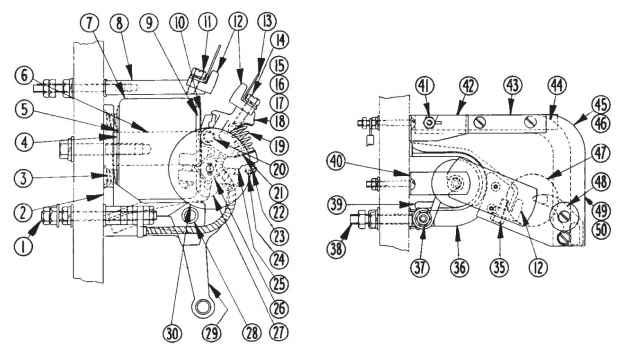

Ohio Contact replacement crane controls for Cutler Hammer No. 590 100 Amp Double Pole DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 14-274-22 | Stud for 1-1/2" Panel |
| 2 | 17-207-15 | Magnet Frame |
| 3 | 69-2441 | Spring |
| 4 | 916-2882Z | Steel Washer |
| 5 | 16-1551-2 | Neoprene Washer |
| 6 | 51-92 | Coil Core |
| 7 | Coil | Give # on Coil |
| 8 | 618-407 | Contact Support Complete |
| 9 | 16-253 | Bakelite Washer |
| 10 | 16-252 | Brass Washer |
| 11 | 911-5445FZ | Contact Screw |
| 12 | 23-812 | Contact, Silver Tipped |
| 12 | 23-3514 | Contact |
| 13 | 49-240 | Arc Guard |
| 14 | 911-5448F1 | Contact Screw |
| 15 | 24-1321-2 | Contact Lever w/Connector |
| 16 | 24-1321-4 | Contact Lever Left Hand |
| 17 | 24-792-5 | Contact Lever Complete R.H. |
| 17 | 624-578 | Contact Lever Left Hand |
| 18 | 24-792 | Contact Lever Complete |
| 18 | 55020-1 | Contact Lever Left Hand |
| 19 | 69-2375 | Spring |
| 20 | 13-4634 | Pin |
| 21 | 16-320 | Washer .016 Thick |
| 22 | 916-174 | Washer .032 Thick |
| 23 | 29-531 | Retaining Ring |
| 24 | 13-591 | Adjusting Pin |
| 25 | 24-864 | Lever |
| 26 | 29-1336 | Insulating Tube |
| 27 | 955-51 | Clamp |
| 28 | 13-170 | Shaft |
| 29 | 24-1404 | Armature Lever |
| 30 | 16-840-21 | Insulating Washer |
| 31 | 6-168-37 | Set of Contacts |
| 35 | 911-5445Z | Long Hex. Screw |
| 36 | 18-739 | Contact Support Complete |
| 37 | 911-5445Z | Long Hex. Screw |
| 38 | 814-266 | Stud For 3/4" Panel |
| 39 | Blowout Coil | Give # on Coil |
| 40 | 79-845 | Support |
| 41 | 14-359-2 | Stud |
| 43 | 17-1523 | Side Plate |
| 44 | 25-812 | Connector |
| 45 | 62-121 | Arc Shield, Complete |
| 47 | 73-242 | Arc Shield |
| 48 | 62-100 | Arc Horn |
| 49 | 62-86-7 | Blowout Complete 3/4" Panel |
