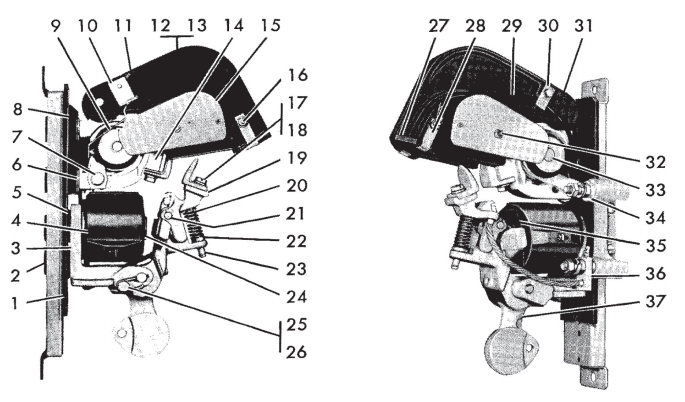

Ohio Contact replacement crane controls for Cutler Hammer No. 914 150 Amp Single Pole DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 56-3677 | Insulator |
| 3 | 17-11147 | Magnet Frame |
| 4 | Coil | Give # on Coil |
| 5 | 16-2315 | Washer |
| 6 | 16-2359 | Shim Washer |
| 7 | 911-5607Z | Hex Screw |
| 8 | 17-7117 | Moulded Base |
| 9 | 52-877 | Latch |
| 10 | 52-876 | Hasp |
| 11 | 62-439 | Arc Shield L.H. |
| 12 | 62-563 | B/O Complete |
| 13 | 62-563-2 | Arc Shield Complete |
| 14 | 18-1376 | Contact Post |
| 15 | 62-465 | Pole Piece |
| 16 | 62-431 | Arc Horn |
| 17 | 23-717 | Contact |
| 17 | 23-813 | Contact, Silver Faced |
| 18 | 911-5606FZ | Contact Screw |
| 19 | 24-4119 | Contact Lever Complete Spring |
| 20 | 69-432 | Spring |
| 21 | 13-4330 | Shaft |
| 21 | 29-531 | Retaining Ring |
| 22 | 16-320 | Washer |
| 23 | 13-734 | Adjusting Pin |
| 23 | 29-531 | Retaining Ring |
| 24 | 51-881 | Core |
| 25 | 13-3859-2 | Shaft |
| 26 | 13-3860 | Pin |
| 27 | 73-1631 | Arc Deflector |
| 28 | 79-9197-6 | Bracket |
| 29 | 25-1927-2 | Connector |
| 30 | 19-1248-3 | Clamp |
| 31 | 62-432 | Arc Shield R.H. |
| 32 | 11-863 | Screw |
| 33 | 9-460-434 | Blowout Coil |
| 34 | 25-1790 | Connector |
| 35 | 55-1452 | Coil Clamp |
| 36 | 24-4119-2 | Contact Lever w/Connector |
| 37 | 24-4130 | Armature Lever |
| 37 | 18-1576 | Stop |
