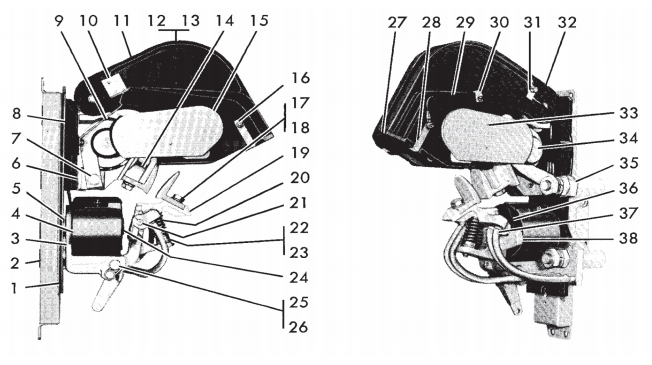

Ohio Contact replacement crane controls for Cutler Hammer No. 920 810 Amp Single Pole DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 56-3686 | Insulator |
| 2 | 56-2698-2 | Insulator |
| 3 | 17-7275 | Magnet Frame |
| 4 | Coil | Give # on Coil |
| 5 | 16-2315 | Washer |
| 5 | 16-2316 | Washer (Top) |
| 6 | 16-1879 | Shim Washer |
| 7 | 911-5890Z | Screw |
| 8 | 17-7340 | Moulded Base |
| 9 | 52-853 | Latch |
| 10 | 52-879 | Hasp |
| 11 | 62-460-2 | Arc Shield L.H. |
| 12 | 62-565-2 | Blowout Complete |
| 13 | 62-565-3 | Arc Shield Complete |
| 14 | 18-1417 | Contact Post |
| 15 | 19-945-7 | Strap |
| 15 | 62-457 | Pole Piece |
| 15 | 62-459 | Inner Arc Shield |
| 16 | 62-561-2 | Arc Horn |
| 17 | 23-1288 | Contact w/Silver Insert |
| 17 | 23-4026 | Contact |
| 18 | 911-5888Z | Contact Mounting Screw |
| 18 | 23-1288 | Contact w/Silver Insert |
| 19 | 24-4584 | Contact Lever Complete |
| 20 | 69-2376 | Spring |
| 21 | 13-4330-3 | Shaft |
| 21 | 29-1264 | Retaining Ring |
| 22 | 916-1164Z | Shim Washer |
| 23 | 13-593 | Adjusting Pin |
| 23 | 29-541 | Spring Ring |
| 24 | 51-979 | Core |
| 25 | 13-3859-4 | Shaft |
| 26 | 13-3862 | Pin |
| 27 | 73-1633 | Arc Deflector |
| 28 | 79-9197-4 | Bracket |
| 29 | 25-1927-4 | Connector |
| 30 | 79-4180-26 | Clamp |
| 31 | 19-1248-3 | Clamp |
| 32 | 62-460 | Arc Shield R.H. |
| 33 | 11-863 | Screw |
| 34 | 9-460-447 | Blowout Coil |
| 35 | 25-1850 | Connector |
| 36 | 55-1553 | Coil Clamp |
| 37 | 24-4584-2 | Contact Lever |
| 38 | 24-4585 | Armature Lever |
