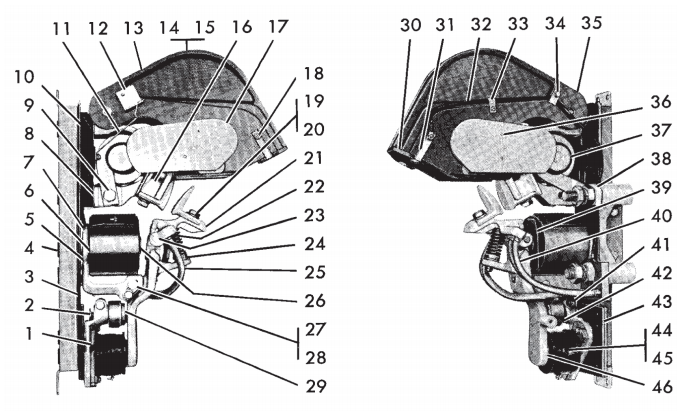

Ohio Contact replacement crane controls for Cutler Hammer No. 921 810 Amp DC Ltl Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 19-1367 | Shim |
| 2 | 11-1062 | Adjusting Screw |
| 3 | 56-3690 | Insulator |
| 4 | 56-2698 | Insulator |
| 5 | 17-7275 | Magnet Frame |
| 6 | Coil | Give # on Coil |
| 7 | 16-2316 | Washer (Top) |
| 7 | 16-231 | Washer |
| 8 | 16-1879 | Shim Washer |
| 9 | 911-5890Z | Screw |
| 10 | 17-7340 | Molded Base |
| 11 | 52-853 | Latch |
| 12 | 52-879 | Hasp |
| 13 | 62-460-2 | Arc Shield L.H. |
| 14 | 62-565-2 | Blowout Complete |
| 15 | 62-565-3 | Arc Shield Complete |
| 16 | 18-1417 | Contact Post |
| 17 | 62-457 | Pole Piece |
| 17 | 19-945-7 | Strap |
| 17 | 62-459 | Inner Arc Shield |
| 18 | 62-561-2 | Arc Horn |
| 19 | 23-1288 | Contact w/Silver Insert |
| 19 | 23-4026 | Contact |
| 20 | 911-5888Z | Contact Mounting Screw |
| 20 | 916-199 | Lockwasher |
| 21 | 24-4584 | Contact Lever Complete |
| 22 | 69-2376 | Spring |
| 23 | 13-4330-3 | Shaft |
| 24 | 916-1164Z | Shim Washer .016 Thick |
| 25 | 13-593 | Adjusting Pin |
| 26 | 51-979 | Core |
| 27 | 13-3859-4 | Shaft |
| 28 | 13-3862 | Pin |
| 29 | 911-679 | Adjusting Screw |
| 30 | 73-1633 | Arc Deflector |
| 31 | 79-9197-4 | Bracket |
| 32 | 25-1927-4 | Connector |
| 33 | 79-4180-26 | Clamp |
| 34 | 19-1248-3 | Clamp |
| 35 | 62-460 | Arc Shield R.H. |
| 37 | 9-460-447 | Blowout Coil |
| 38 | 25-1850 | Connector |
| 39 | 55-1553 | Coil Clamp |
| 40 | 24-4584-2 | Contact Lever |
| 41 | 17-7625 | Base |
| 42 | 1315-1 | Shunt Nut |
| 43 | 56-3689 | Insulator |
| 44 | Coil | Give # on Coil |
| 45 | 18-1342-2 | Hold Out Coil Post |
| 46 | 24-4678 | Armature Lever |
