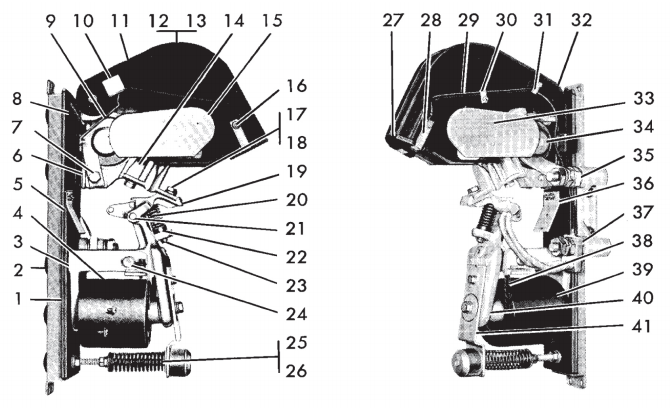

Ohio Contact replacement crane controls for Cutler Hammer No. 926 600 Amp Spring Closed DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 56-3687 | Insulator |
| 2 | 56-2698-2 | Insulator |
| 3 | 17-7346 | Magnet Frame |
| 4 | Coil | Give # on Coil |
| 5 | 56-3688 | Insulator |
| 6 | 16-1879 | Shim Washer |
| 7 | 911-5890Z | Screw |
| 8 | 17-7340 | Molded Base |
| 9 | 52-853 | Latch |
| 10 | 52-879 | hasp |
| 12 | 62-565 | Blowout Complete |
| 13 | 62-565-3 | Arc Shield Complete |
| 14 | 18-1417 | Contact Post |
| 15 | 19-945-7 | Strap |
| 15 | 62-459 | Inner Arc Shield |
| 15 | 62-457 | Pole Piece |
| 16 | 62-561-2 | Arc Horn |
| 17 | 23-4026 | Contact |
| 17 | 3-1288 | Contact w/Silver Insert |
| 18 | 911-5888Z | Contact Mounting Screw |
| 19 | 24-4205 | Contact Lever Complete |
| 20 | 69-2376 | Spring |
| 21 | 29-1264 | Retaining Ring |
| 21 | 13-4330-3 | Shaft |
| 22 | 916-1164Z | Shim Washer .016 Thick |
| 23 | 13-593 | Adjusting Pin |
| 23 | 29-541 | Spring Ring |
| 24 | 13-4290 | Shaft |
| 25 | 69-2145 | Spring |
| 26 | 18-1500 | Stop |
| 27 | 73-1633 | Arc Deflector |
| 28 | 79-9197-4 | Bracket |
| 29 | 25-1927-4 | Connector |
| 30 | 79-4180-26 | Clamp |
| 31 | 19-1248-3 | Clamp |
| 33 | 11-863 | Screw |
| 34 | 9-460-438 | Blowout Coil |
| 35 | 25-1850 | Connector |
| 36 | 79-9204 | Bracket |
| 37 | 24-4205-2 | Contact Lever |
| 38 | 55-1667 | Coil Clamp |
| 39 | 51-342 | Core |
| 40 | 24-4207-2 | Armature Lever |
| 41 | 24-4552 | Stop Lever |
