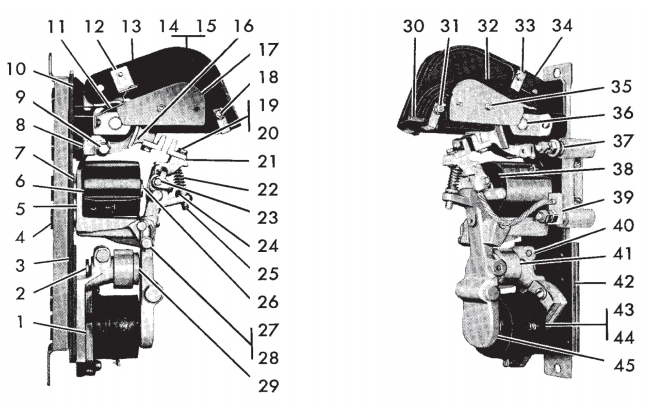

Ohio Contact replacement crane controls for Cutler Hammer No. 933 100 Amp DC Ltl Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 19-1367 | Shim |
| 2 | 11-1062 | Adjusting Screw |
| 2 | 13-1079-17 | Pin |
| 3 | 56-3675 | Insulator |
| 4 | 56-2698 | Insulator |
| 5 | 17-7114 | Magnet Frame |
| 6 | Coil | Give # on Coil |
| 7 | 16-2315 | Washer |
| 8 | 16-2359 | Shim Washer |
| 9 | 911-5446Z | Screw |
| 10 | 17-7117 | Moulded Base |
| 11 | 52-859 | Latch |
| 12 | 52-876 | Hasp |
| 13 | 62-446-2 | Arc Shield (Left Hand) |
| 14 | 62-562 | Blowout Complete |
| 15 | 62-562-2 | Arc Shield Complete |
| 16 | 18-1378 | Contact Post |
| 17 | 19-989-19 | Strap |
| 17 | 62-463 | Pole Piece |
| 18 | 62-444 | Arc Horn |
| 19 | 23-812 | Contact, Silver Tipped |
| 19 | 23-3514 | Contact |
| 20 | 911-5445Z | Long Hex. Screw |
| 21 | 24-4123 | Contact Lever, Complete |
| 22 | 69-2375 | Spring |
| 23 | 13-4330 | Shaft |
| 23 | 29-531 | Retaining Ring |
| 24 | 16-320 | Washer |
| 25 | 13-591 | Adjusting Pin |
| 25 | 29-531 | Retaining Ring |
| 26 | 51-885 | Core |
| 27 | 13-3859 | Shaft |
| 28 | 13-3860 | Pin |
| 29 | 911-679 | Adjusting Screw |
| 30 | 73-1630 | Arc Deflector |
| 31 | 79-9197-5 | Bracket |
| 32 | 25-1927 | Connector |
| 33 | 19-1248-3 | Clamp |
| 34 | 62-446 | Arc Shield (Right Hant) |
| 35 | 911-2104Z | Screw |
| 36 | Blowout Coil | Give # on Coil |
| 37 | 25-1798 | Connector |
| 38 | 55-1454 | Coil Clamp |
| 39 | 24-4123-2 | Contact Lever w/Connector |
| 40 | 17-7625 | Base |
| 41 | 1315-1 | Shunt Nut |
| 42 | 56-3674 | Insulator |
| 43 | Holdout Coil | Give # on Coil |
| 44 | 18-1342-2 | Hold Out Coil Post |
| 45 | 24-4131 | Armature Lever |
