Ohio Contact replacement crane controls for Cutler Hammer No. 934 150 Amp Single Pole DC Ltl Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

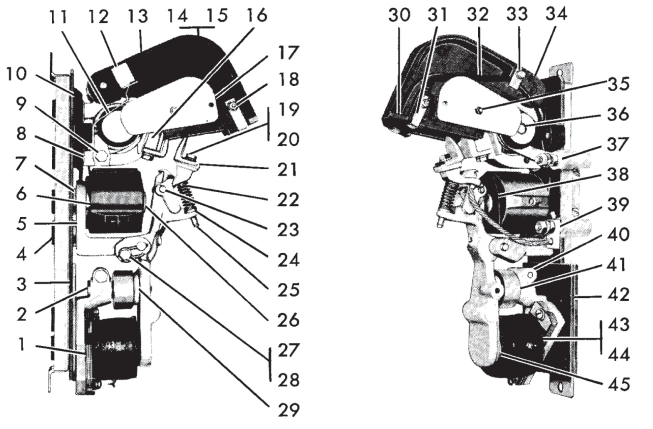

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 19-1367 | Shim |
| 2 | 13-1079-17 | Pin |
| 2 | 11-1062 | Adjusting Screw |
| 3 | 56-3680 | Insulator |
| 4 | 56-2698 | Insulator |
| 5 | 17-11147 | Magnet Frame |
| 6 | Coil | Give # on Coil |
| 7 | 16-2315 | Washer |
| 8 | 16-2359 | Shim Washer |
| 9 | 911-5607Z | Hex Screw |
| 10 | 17-7117 | Moulded Base |
| 11 | 52-877 | Latch |
| 12 | 52-876 | Hasp |
| 14 | 62-563 | B/O Complete |
| 15 | 62-563-2 | Arc Shield |
| 16 | 18-1376 | Contact Post |
| 17 | 19-989-20 | Strap |
| 17 | 62-465 | Pole Piece |
| 18 | 62-431 | Arc Horn |
| 19 | 23-813 | Contact, Silver Faced |
| 19 | 23-717 | Contact |
| 20 | 911-5606FZ | Contact Screw |
| 21 | 24-4119 | Contact Lever Complete |
| 22 | 69-432 | Spring |
| 23 | 29-531 | Retaing Ring |
| 24 | 13-4330 | Shaft |
| 24 | 16-320 | Washer .016 Thick |
| 25 | 13-734 | Adjusting Pin |
| 26 | 51-881 | Core |
| 27 | 13-3859-2 | Shaft |
| 28 | 13-3860 | Pin |
| 29 | 911-679 | Adjusting Screw |
| 30 | 73-1631 | Arc Deflector |
| 31 | 79-9197-6 | Bracket |
| 32 | 25-1927-2 | Connector |
| 33 | 19-1248-3 | Clamp |
| 35 | 11-863 | Screw |
| 36 | 9-460-434 | Blowout Coil |
| 37 | 911-5608Z | Screw |
| 37 | 25-1790 | Connector |
| 38 | 55-1452 | Coil Clamp |
| 39 | 24-4119-2 | Contact Lever |
| 40 | 17-7625 | Base |
| 41 | 1315-1 | Shunt Nut |
| 42 | 56-3674 | Insulator |
| 43 | Holdout Coil | Give # on Coil |
| 44 | 18-1342-2 | Hold Out Coil Post |
| 45 | 24-4134 | Armature Lever |
