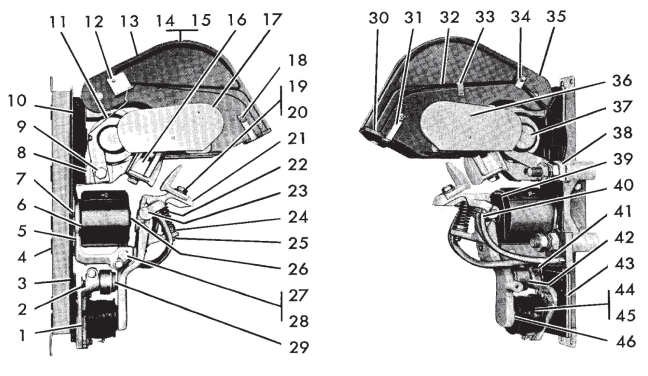

Ohio Contact replacement crane controls for Cutler Hammer No. 936 600 Amp Single Pole DC Ltl Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 19-1366 | Shim |
| 2 | 11-1062 | Adjusting Screw |
| 2 | 13-1079-17 | Pin |
| 3 | 56-3690 | Insulator |
| 5 | 17-7275 | Magnet Frame |
| 6 | Coil | Give # on Coil |
| 7 | 16-2315 | Washer |
| 7 | 16-2316 | Washer (Top) |
| 8 | 16-1879 | Shim Washer |
| 9 | 911-5890Z | Screw |
| 10 | 17-7340 | Moulded Base |
| 11 | 52-853 | Latch |
| 12 | 52-879 | Hasp |
| 14 | 62-565 | Blowout Complete |
| 15 | 62-565-3 | Arc Shield Complete |
| 16 | 18-1417 | Contact Post |
| 17 | 62-459 | Inner Arc Shield |
| 17 | 62-457 | Pole Piece |
| 17 | 19-945-7 | Strap |
| 18 | 62-561-2 | Arc Horn |
| 19 | 23-4026 | Contact |
| 19 | 23-1288 | Contact w/Silver Insert |
| 20 | 911-5888Z | Contact Mounting Screw |
| 21 | 24-4205 | Contact Lever Complete |
| 22 | 69-2376 | Spring |
| 23 | 13-4330-3 | Shaft |
| 23 | 29-1264 | Retaining Ring |
| 24 | 16-319 | Shim Washer .032 Thick |
| 25 | 29-541 | Spring Ring |
| 25 | 13-593 | Adjusting Pin |
| 26 | 51-979 | Core |
| 27 | 13-3859-4 | Shaft |
| 28 | 13-3862 | Pin |
| 29 | 911-679 | Adjusting Screw |
| 30 | 73-1633 | Arc Deflector |
| 31 | 79-9197-4 | Bracket |
| 32 | 25-1927-4 | Connector |
| 33 | 79-4180-26 | Clamp |
| 34 | 19-1248-3 | Clamp |
| 36 | 11-863 | Screw |
| 37 | 9-460-438 | Blowout Coil |
| 38 | 25-1850 | Connector |
| 39 | 55-1553 | Coil Clapm |
| 40 | 24-4205-2 | Contact Lever w/Connector |
| 41 | 17-7625 | Base |
| 41 | 911-5652Z | Screw |
| 42 | 1315-1 | Shunt Nut |
| 43 | 56-3689 | Insulator |
| 44 | Holdout Coil | Give # on Coil |
| 45 | 18-1342-2 | Hold Out Coil Post |
| 46 | 24-4208-2 | Armature Lever |
