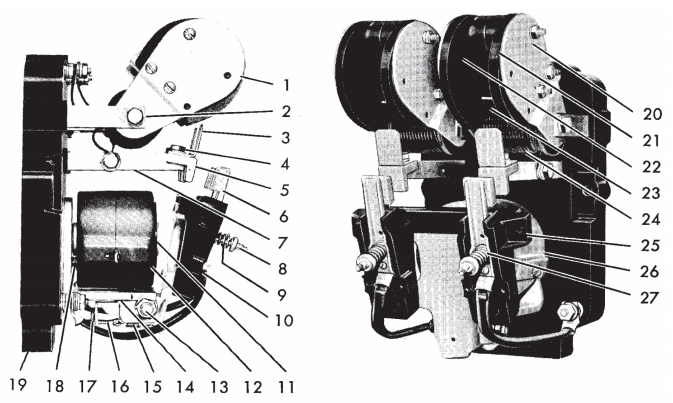

Ohio Contact replacement crane controls for Cutler Hammer No. 952 50 Amp Double Pole DC Ltl Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 62-474 | Blowout Complete |
| 2 | 79-5433 | Bracket |
| 3 | 62-440 | Arc Guard |
| 4 | 911-5445Z | Contact Screw |
| 5 | 23-3286 | Contact |
| 5 | 23-1258 | Contact (Silver Faced) |
| 6 | 40-492-2 | Movable Contact Finger |
| 6 | 40-492-3 | Contact Finger w/Silver |
| 7 | 18-1351 | Contact Post |
| 8 | 15-797 | Self Locking Cup Nut |
| 9 | 69-95 | Spring |
| 10 | 24-4065-3 | Armature Lever |
| 11 | 51-913 | Core |
| 12 | 4416-1321 | Washer |
| 13 | 18-219-5 | Shaft |
| 14 | 17-6943 | Magnet Frame |
| 15 | 69-158 | Spring |
| 16 | 14-143 | Adjusting Stud |
| 17 | 15-842 | Adjusting Nut |
| 18 | 69-195 | Spring |
| 19 | 81-7225-2 | Molded Base |
| 20 | 62-474-3 | Pole Piece |
| 21 | 73-1194 | Arc Shield |
| 22 | 73-1194-2 | Arc Shield |
| 23 | 23-3311-3 | Protecting Clip |
| 24 | Coil | Give # on Coil |
| 25 | 24-4065 | Armature Lever Complete |
| 26 | Coil | Give # on Coil |
| 27 | 49-1204-13 | Spring Gland |
