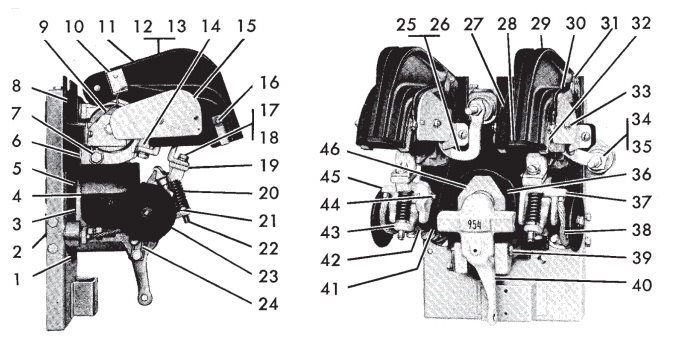

Ohio Contact replacement crane controls for Cutler Hammer No. 954 150 Amp Double Pole DC Ltl Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 56-3691 | Insulator |
| 3 | 17-7193 | Magnet Frame |
| 4 | Coil | Give # on Coil |
| 5 | 16-2315 | Washer |
| 6 | 16-2359 | Shim Washer |
| 7 | 911-5607Z | Hex Screw |
| 7 | 916-198 | Lockwasher |
| 7 | 916-801Z | Washer |
| 8 | 17-7117 | Moulded Base |
| 9 | 52-877 | Latch |
| 10 | 52-876 | Hasp |
| 12 | 62-563-3 | L.H. Blowout, Complete |
| 12 | 62-563-7 | L.H. Blowout, Complete |
| 13 | 62-563-2 | Arc Shield Complete |
| 14 | 18-1376 | Contact Post |
| 15 | 19-989-20 | Strap |
| 15 | 62-465 | Pole Piece |
| 16 | 62-431 | Arc Horn |
| 17 | 23-717 | Contact |
| 17 | 23-813 | Contact, Silver Faced |
| 18 | 911-5606Z | Contact Screw |
| 18 | 916-198 | Lockwasher |
| 19 | 24-4119-3 | L.H. Contact Lever, Complete |
| 20 | 69-432 | Spring |
| 21 | 16-320 | Washer .016 Thick |
| 22 | 13-734-2 | Adjusting Pin |
| 22 | 29-531 | Retaining Ring |
| 23 | 16-840-21 | Insulating Washer |
| 25 | 9-460-448 | Blowout Coil Left Hand |
| 26 | 25-2099 | Connector |
| 27 | 62-563 | B/O Complete R.H. |
| 27 | 62-563-6 | R.H. Blowout, Complete |
| 28 | 73-1631 | Arc Deflector |
| 30 | 25-1927-2 | Connector |
| 31 | 19-1248-3 | Clamp |
| 32 | 79-9197-6 | Bracket |
| 34 | 9-460-434 | Blowout Coil |
| 35 | 25-1790 | Connector |
| 36 | 51-896 | Core |
| 37 | 24-4119 | Contact Lever Complete |
| 38 | 24-4119-2 | Contact Lever |
| 39 | 13-3859-3 | Shaft |
| 40 | 18-1576 | Stop |
| 40 | 24-4687-3 | Armature Lever |
| 41 | 29-1336-2 | Insulating Tube |
| 42 | 55-573 | Clamp |
| 43 | 24-860 | Contact Lever |
| 44 | 13-4330 | Shaft |
| 45 | 24-4119-2 | Contact Lever w/Connector |
| 46 | 55-1451 | Coil Clamp |
