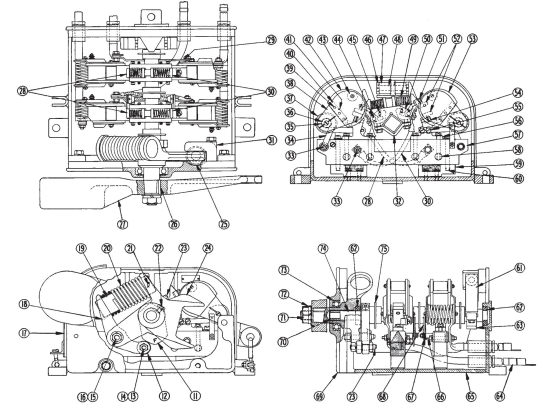

Ohio Contact replacement crane controls for Cutler Hammer P-100 Safety Limit Switch. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 11 | 54-829 | Cam |
| 12 | 29-1465 | Roller |
| 13 | 11-789 | Screw |
| 14 | 20-253 | Needle Bearing |
| 15 | 11-788 | Screw |
| 16 | 20-299 | Needle Bearing |
| 17 | 47-1673 | Cover |
| 18 | 24-1611 | Cam Lever |
| 19 | 29-1459-2 | Tube |
| 20 | 69-869 | Spring |
| 21 | 13-840 | Pin |
| 22 | 11-796 | Headless Set Screwe |
| 23 | 939-481 | Pipe Plug |
| 24 | 24-1533 | Stop Lever |
| 25 | 18-1083 | Bumper |
| 26 | 13-1403 | Key |
| 27 | 24-1532 | Weight Lever Straight |
| 28 | 24-807 | Contact Lever Left Hand |
| 29 | 25-828 | Connector |
| 30 | 24-807-2 | Contact Lever Right Hand |
| 31 | 55-464 | Bumper Holder |
| 32 | 55-468 | Clamp |
| 33 | 911-5620Z | Screw |
| 33 | 911-5622Z | Screw |
| 33 | 11-723-6 | Screw |
| 33 | 915-802Z | Nut |
| 33 | 916-801Z | Washer |
| 33 | 916-763Z | Lockwasher |
| 35 | 56-1079-3 | Tube |
| 36 | 985-962Z | Core DC (solid) |
| 37 | 1016-1004 | Washer |
| 38 | 962-1204Z | DC Pole Piece |
| 39 | 13-719 | Pin |
| 40 | 2222-1485 | Spacer |
| 41 | 933-201Z | Clip |
| 42 | 4973-2 | Arc Shield Side Piece |
| 42 | 2222-386 | Spacer |
| 43 | 956-511 | Shaft |
| 44 | 956-334 | Shaft |
| 45 | 15-663 | Nut |
| 46 | 18-1157 | Bumper |
| 47 | 914-611 | Bumper Stud |
| 48 | 69-647 | Spring |
| 49 | 916-1164Z | Shim Washer |
| 50 | 20-123 | Contact Lever Support |
| 51 | 916-763Z | Lockwasher |
| 51 | 911-5606Z | Contact Screw |
| 52 | 1321-69 | Contact Segment |
| 53 | 662-187 | Blowout Chute DC |
| 54 | 916-763Z | Lockwasher |
| 54 | 911-5606FZ | Contact Screw |
| 55 | 916-763Z | Lockwasher |
| 55 | 911-5605FZ | Blowout Coil Screw |
| 56 | 79-1145 | Contact Bracket |
| 57 | 81-2405 | Base |
| 58 | 15-330 | Nut |
| 59 | 17-1544 | Mounting Block |
| 60 | 11-798 | Screw |
| 61 | 24-738 | Stop Lever |
| 62 | 29-1543-30 | Bearing |
| 63 | 3455-9F1 | Clamp |
| 64 | 25-1473 | Connector |
| 65 | 17-5282 | Frame |
| 66 | 15-332 | Spacer Nut |
| 67 | 69-816 | Flat Spring |
| 68 | 79-1153 | Bracket |
| 69 | 17-1531 | End Plate |
| 70 | 29-1543-29 | Bronze Bearing |
| 71 | 15-594-3 | Nut |
| 71 | 916-2042 | Lockwasher |
| 72 | 47-1672 | Locking Plate |
| 74 | 13-1392 | Shaft |
| 75 | 13-1392-2 | Shaft Insulation |
