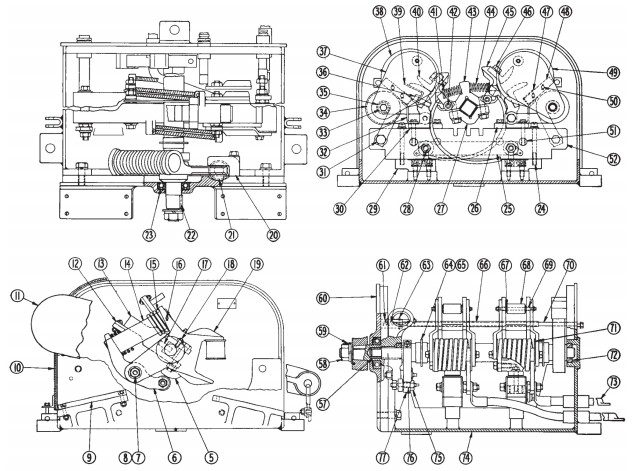

Ohio Contact replacement crane controls for Cutler Hammer P-200 Safety Limit Stop. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 5 | 54-829 | Cam |
| 6 | 20-253 | Needle Bearing |
| 6 | 24-1611 | Cam Lever |
| 7 | 11-788 | Screw |
| 8 | 20-299 | Needle Bearing |
| 9 | 18-1187 | Stop Block |
| 10 | 47-1994 | Cover |
| 11 | 24-3607 | Weight Lever (Straight) |
| 12 | 18-1198 | Stop Block |
| 13 | 18-1196 | Stop Post |
| 14 | 29-1459-2 | Tube |
| 15 | 69-1832 | Spring |
| 16 | 13-840 | Pin |
| 17 | 13-3186-1 | Roll Pin |
| 18 | 11-796 | Headless Set Screw |
| 19 | 24-1533 | Stop Lever |
| 20 | 55-464 | Bumper Holder |
| 21 | 18-1083 | Bumper |
| 22 | 13-1403 | Key |
| 23 | 20-755 | Seal Bearing |
| 24 | 911-4872Z | Screw |
| 25 | 25-861 | Connector |
| 26 | 79-4304 | Contact Bracket |
| 27 | 55-1609 | Clamp |
| 28 | 815-1128 | Nut |
| 28 | 1314-845 | Stud For 1.5" Panel |
| 28 | 911-5912Z | Screw |
| 28 | 816-1005 | Washer |
| 29 | 17-1544 | Mounting Block |
| 30 | 19-359 | Shim |
| 31 | 911-5890Z | Screw |
| 32 | 79-4305 | Stop Bracket |
| 33 | 29-2607-9 | Core |
| 34 | 9-460-232 | Blowout Coil |
| 35 | 56-1111-13 | Insulating Tube |
| 36 | 916-199 | Lockwasher |
| 36 | 911-5892Z | Contact Screw |
| 37 | 3462-183F1 | Pole Piece |
| 38 | 62-109-14 | Blowout Complete |
| 39 | 73-1268 | Arc Guard |
| 40 | 1321-829 | Contact Segment |
| 41 | 13-3962 | Adjusting Pin |
| 42 | 13-3961 | Shaft |
| 43 | 3479-236F1 | Contact Support |
| 44 | 69-1831 | Spring |
| 45 | 24-1615 | Contact Lever with Connector |
| 47 | 55-173 | Protecting Clip |
| 48 | 29-1537 | Spacer |
| 49 | 4973-3. | Arc Shield Side Piece |
| 50 | 813-159 | Pin |
| 51 | 15-330-2 | Nut |
| 52 | 81-2513 | Base |
| 57 | 29-1543-29 | Bronze Bearing |
| 58 | 15-594-3 | Nut |
| 58 | 916-2042 | Lockwasher |
| 59 | 47-1672 | Locking Plate |
| 60 | 17-5625 | End Plate |
| 61 | 18-548 | Post |
| 62 | 69-2350 | Spring |
| 63 | 13-3187-5 | Roll Pin |
| 64 | 13-1466 | Shaft |
| 65 | 13-1466-3 | Shaft Insulation |
| 66 | 29-550 | Insulator Tube |
| 69 | 829-505 | Spacer |
| 70 | 61-439 | Rod |
| 71 | 16-687-6 | Insulating Washer |
| 72 | 29-1543-30 | Bearing |
| 73 | 25-1474 | Connector |
| 75 | 11-789 | Screw |
| 77 | 29-1465 | Roller |
| 78 | 54-3538-2 | Weight |
