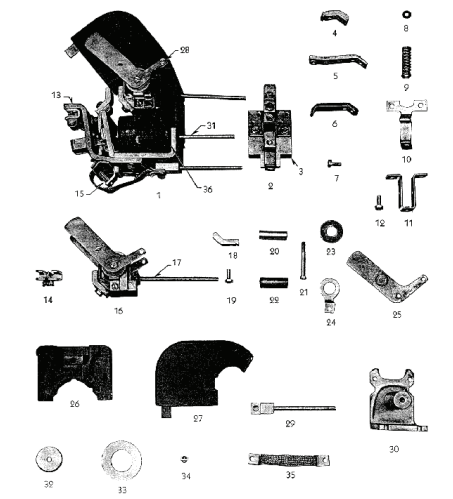

Ohio Contact replacement crane controls for Westinghouse Type M Frame 301 DC Magnetic Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 13 | 1745045 | Armature Spring Bracket, Complete |
| 12 | 288683 | Spring Support Bolt |
| 11 | 1486820 | Moving Contact Spring Support |
| 10 | 1486828 | Auxiliary Bearing Bracket |
| 9 | 1486859 | Moving Contact Spring |
| 8 | 1490289 | Spring Shim |
| 7 | 106149 | Contact Bolt |
| 6 | 1486840 | Contact Support |
| 5 | 1486844 | Connector |
| 4 | 1486802 | Contact |
| 3 | 1486827 | Bare Armature |
| 2 | 149029 | Armature Complete |
| 1 | 1490229 | M-301 Contactor |
| 1 | 1486982 | Mechanical Parts-Rear Connected |
| 14 | 1486695 | Arc Switch |
| 15 | 1486703 | Armature Spring |
| 16 | 1486830 | Adjusting Bar |
| 17 | 1619510 | Adjusting Bar Screw |
| 18 | 1490287 | Stationary Contact w/Blowout Coil |
| 19 | 1486767 | Blowout Coil |
| 20 | 1486802 | Contact |
| 21 | 106149 | Contact Bolt |
| 22 | 1486748 | Blowout Coil Core |
| 23 | 442007 | Blowout Coil Core Bolt |
| 24 | 1486756 | Insulating Tube |
| 25 | 148676 | Insulating Washer |
| 26 | 1486752 | Spring Washer |
| 27 | 1486742 | Pole Piece, Left Hand |
| 27 | 1486743 | Pole Piece, Right Hand |
| 28 | 1486688 | Base |
| 29 | 1486648 | Arc Box Complete |
| 30 | 716666 | Arc Box Retaining Bolt |
| 31 | 1486851 | Copper Sleeve |
| 32 | 1486865 | Shunt Stud |
| 33 | 1486799 | Frame w/Core |
| 34 | 1486797 | Upper Frame |
| 35 | 1486798 | Lower Frame |
| 36 | 559401 | Mounting Stud |
| 37 | 1486833 | Pole Face |
| 38 | 1486996 | Coil Washer |
| 39 | 1437659 | Coil Terminal |
| 40 | 106149 | Contact Bolt |
| 40 | 1486867 | Shunt |
| 41 | 1754375 | Operating Coil, 250 Volt |
| 41 | 1419545 | Operating Coil, 230 Volt |
| 41 | 30B4375G25 | Operating Coil, 125 Volt |
| 41 | 1419544 | Operating Coil, 115 Volt |
| 41 | 1419546 | Operating Coil, 550 Volt |
| 0 | 1745057 | Contact Kit |
| 0 | 30B4375G11 | Coil, 250 VDC |
| 0 | 657C900G03 | Coil 230 VDC |
| 0 | 26D2610G21 | Contact Kit |
