Ohio Contact replacement crane controls for Westinghouse Type M Frame 501 DC Magnetic Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

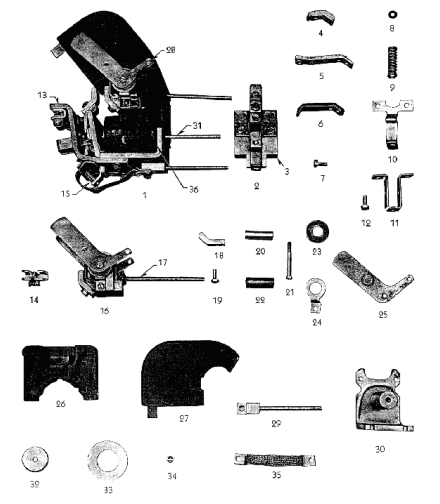

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 1490231 | M501 Contactor, Front Connected |
| 2 | 1490301 | Armature Complete |
| 3 | 1486929 | Bare Armature |
| 5 | 1486945 | Connector |
| 6 | 1486941 | Contact Support |
| 7 | 401234 | Bolt |
| 8 | 1490290 | Spring Shim |
| 9 | 1486860 | Moving Contact Spring |
| 10 | 148693 | Aux. Bearing Bracket |
| 11 | 1486937 | Moving Contact Spring Support |
| 12 | 318615 | Spring Support Bolt |
| 13 | 1745047 | Armature Spring Bracket Comp. |
| 14 | 1486695 | Arc Switch |
| 15 | 1486704 | Armature Spring |
| 16 | 1486933 | Adjusting Bar |
| 17 | 1619511 | Adjusting Bar Screw |
| 18 | 1490299 | Stationary Contact w/BO Coil |
| 19 | 1486780 | Blowout Coil |
| 21 | 401234 | Bolt |
| 22 | 1486749 | Blowout Coil Core |
| 23 | 441891 | Blowout Coil Core Bolt |
| 24 | 1486757 | Insulating Tube |
| 25 | 1486761 | Insulating Washer |
| 26 | 1486753 | Spring Washer |
| 27 | 1486745 | Pole Piece, RH |
| 27 | 1486744 | Pole Piece, LH |
| 28 | 1486689 | Base |
| 29 | 1486651 | Arc Box Complete |
| 30 | 1449819 | Arc Box Retaining Bolt |
| 31 | 1486852 | Copper Sleeve |
| 32 | 1486951 | Shunt Stud |
| 33 | 1486959 | Frame w/Core |
| 34 | 1486957 | Upper Frame |
| 35 | 1486958 | Lower Frame |
| 36 | 559402 | Mounting Stud |
| 37 | 1486834 | Pole Face |
| 38 | 1486997 | Coil Washer |
| 39 | 1437659 | Coil Terminal |
| 40 | 1486952 | Shunt |
| 41 | 1419552 | Operating Coil 115V |
| 41 | 1754376 | Operating Coil 250V |
| 41 | 1419554 | Operating Coil 550V |
| 41 | 1419553 | Operating Coil 230V |
| 42 | 30B4375G24 | Operating Coil 125V |
| 0 | 25A1649G05 | Armature Kit |
| 0 | 30B4375G06 | Coil, 550 VDC |
| 0 | 30B4375G05 | Coil, 230 VDC |
| 0 | 30B4375G04 | Coil, 115 VDC |
| 0 | 30B4375G12 | Coil, 250 VDC |
| 0 | 1745058 | Contact Kit |
