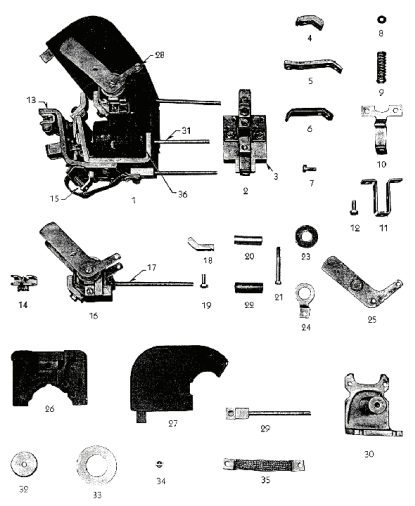

Ohio Contact replacement crane controls for Westinghouse Type M Frame 701 DC Magnetic Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 2 | 1486928 | Armature Complete |
| 3 | 1486914 | Connector |
| 4 | 1486804 | Contact |
| 5 | 1486914 | Connector |
| 6 | 1486911 | Contact Support |
| 7 | 289960 | Contact Bolt |
| 8 | 1490291 | Moving Contact Spring Shim |
| 8 | 816395 | Moving Contact Spring Washer |
| 9 | 1486862 | Moving Contact Spring |
| 10 | 1486918 | Aux. Bearing Bracket |
| 11 | 1486912 | Moving Contact Spring Support |
| 12 | 164954 | Spring Support Bolt |
| 14 | 1486696 | Arc Switch |
| 15 | 1486705 | Armature Spring |
| 16 | 1486920 | Adjusting Bar |
| 17 | 1619512 | Adj. Bar Screw |
| 18 | 1486785 | Stationary Contact W/BO Coil |
| 19 | 1486889 | Blowout Coil |
| 20 | 1486804 | Contact |
| 22 | 289960 | Contact Bolt |
| 22 | 1486750 | Blowout Coil Core |
| 23 | 968986 | Blowout Coil Core Bolt |
| 24 | 1486758 | Insulating Tube |
| 25 | 1486762 | Insulating Washer |
| 25 | 1490236 | Insulating Washer |
| 26 | 1486754 | Spring Washer |
| 27 | 486746 | Pole Piece Left Hand |
| 28 | 1486690 | Base |
| 29 | 1486654 | Arc Box Complete |
| 30 | 1449957 | Arc Box Retaining Bolt |
| 31 | 1486853 | Copper Sleeve |
| 33 | 1486903 | Fraem w/Core |
| 35 | 1486905 | Lower Frame |
| 36 | 59-359 | Mounting Stud |
| 37 | 1625814 | Pole Face |
| 38 | 1625816 | Coil Washer |
| 39 | 1437659 | Coil Terminal |
| 40 | 1486926 | Shunt |
| 41 | 30B4377G23 | Coil |
| 41 | 30B4377G02 | Coil, 230 VDC. |
| 41 | 1754336 | Coil |
| 41 | 30B4377G24 | Coil |
| 41 | 30B4377G13 | Coil |
| 41 | 1419566 | Coil |
| 41 | 1419565 | Coil |
| 41 | 1419564 | Coil, 115 VDC |
| 41 | 30B4377G08 | Coil, 550 VDC |
| 41 | 30B4377G25 | Coil |
| 0 | 1486747 | Pole Piece Right Hand |
| 0 | 174506 | Contact Kit |
