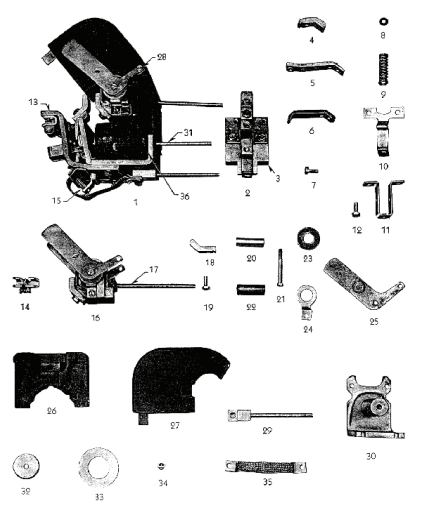

Ohio Contact replacement crane controls for Westinghouse Type MD Frame 501 DC Magnetic Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 2 | 1490301 | Armature Complete |
| 3 | 1486929 | Bare Armature |
| 4 | 1486803 | Contact |
| 5 | 1486945 | Connector |
| 6 | 1486941 | Contact Support |
| 7 | 401234 | Bolt |
| 8 | 1490290 | Spring Shim |
| 9 | 1486860 | Moving Contact Spring |
| 10 | 1486930 | Aux. Bearing Bracket |
| 11 | 1486937 | Moving Contact Spring Support |
| 12 | 318615 | Spring Support Bolt |
| 14 | 1486695 | Arc Switch |
| 15 | 1486704 | Armature Spring |
| 16 | 148693 | Adjusting Bar |
| 17 | 1619511 | Adjusting Bar Screw |
| 20 | 86803 | Contact |
| 21 | 401234 | Bolt |
| 22 | 1486749 | Blowout Coil Core |
| 23 | 441891 | Blowout Coil Core Bolt |
| 24 | 1486757 | Insulating Tube |
| 25 | 1486761 | Insulating Washer |
| 26 | 1486753 | Spring Washer |
| 27 | 1486744 | Pole Piece, LH |
| 0 | 1486745 | Pole Piece, RH |
| 29 | 1486651 | Arc Box Complete |
| 31 | 1486852 | Copper Sleeve |
| 33 | 1486959 | Frame w/Core |
| 34 | 1486957 | Upper Frame |
| 35 | 1486958 | Lower Frame |
| 37 | 1486834 | Pole Face |
| 38 | 1486997 | Coil Washer |
| 39 | 1437659 | Coil Terminal |
| 40 | 1486952 | Shunt |
| 41 | 1419554 | Operating Coil 550V |
| 41 | 1419552 | Operating Coil 115V |
| 41 | 1419553 | Operating Coil 230V |
| 41 | 30B4375G24 | Operating Coil 125V |
| 41 | 1754376 | Operating Coil 250V |
| 0 | 1745058 | Contact Kit |
