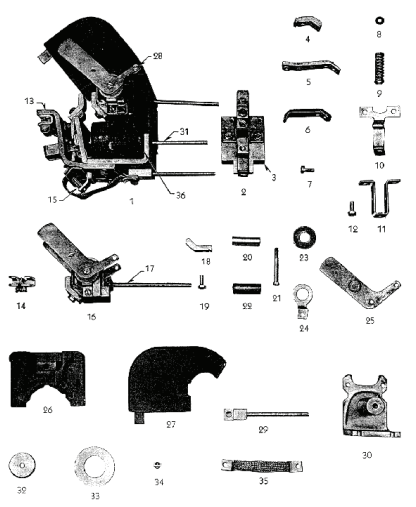

Ohio Contact replacement crane controls for Westinghouse Type MD Frame 601 DC Magnetic Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 2 | 1486928 | Armature Complete |
| 3 | 1486917 | Bare Armature |
| 4 | 1486804 | Contact |
| 5 | 1486914 | Connector |
| 6 | 1486911 | Contact Support |
| 7 | 289960 | Contact Bolt |
| 8 | 816395 | Moving Contact Spring Washer |
| 8 | 1490291 | Moving Contact Spring Shim |
| 9 | 1486862 | Moving Contact Spring |
| 10 | 1486918 | Aux. Bearing Bracket |
| 11 | 1486912 | Moving Contact Spring Support |
| 12 | 164954 | Spring Support Bolt |
| 14 | 1486696 | Arc Switch |
| 15 | 1486705 | Armature Spring |
| 16 | 1486920 | Adjusting Bar |
| 17 | 1619512 | Adj. Bar Screw |
| 20 | 1486804 | Contact |
| 21 | 289960 | Contact Bolt |
| 22 | 968986 | Blowout Coil Core Bolt |
| 24 | 1486758 | Insulating Tube |
| 25 | 1490236 | Insulating Washer |
| 25 | 1486762 | Insulating Washer |
| 26 | 1486754 | Spring Washer |
| 27 | 1486746 | Pole Piece Left Hand |
| 0 | 1486747 | Pole Piece Right Hand |
| 29 | 1486654 | Arc Box Complete |
| 31 | 1486853 | Copper Sleeve |
| 33 | 1486903 | Frame w/Core |
| 34 | 1496906 | Upper Frame |
| 35 | 1486905 | Lower Frame |
| 37 | 1625814 | Pole Face |
| 38 | 1625816 | Coil Washer |
| 39 | 1437659 | Coil Terminal |
| 41 | 1419564 | Coil, 115 VDC |
| 41 | 1419565 | Coil |
| 41 | 1419566 | Coil |
| 41 | 30B4377G13 | Coil |
| 41 | 1754336 | Coil |
| 0 | 1745060 | Contact Kit |
